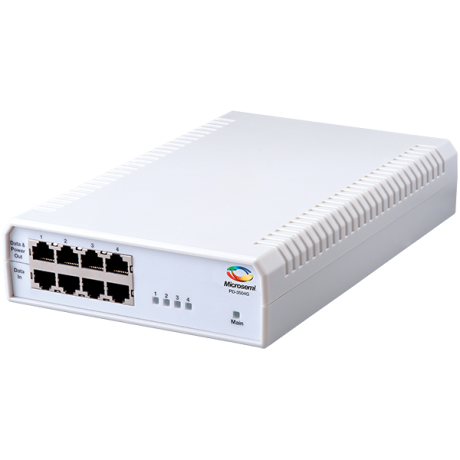

PD-3504G

4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan

Status: In Production

Features:

  • Number of ports: 4
  • PoE output: 15.4W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3af (PoE), RoHS compliant, WEEE compliant, CE
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The four ports PoE midspan provides up to 15.4 Watts of power over Ethernet and offers a IEEE 802.3af-compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. The PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation,it can be easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Additional Features
  • Number of ports: 4
  • PoE output: 15.4W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3af (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2), GS Mark Per EN 60950
  • Compact design
Parametrics
Name
Value
Product Type
15.4W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3af
Power Per Port
15.4W
Operating Environment
Indoor
Number of Ports
4
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Warranty (Years)
1

Documents

Jump to:

Data Sheets


672KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-3504G/AC
640.0000
880.0000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-AU
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-EU
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-GS
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-JP
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-UK
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
PD-3504G/AC-US
820.0000
1080.000
N/A
N/A
542x495x329mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
