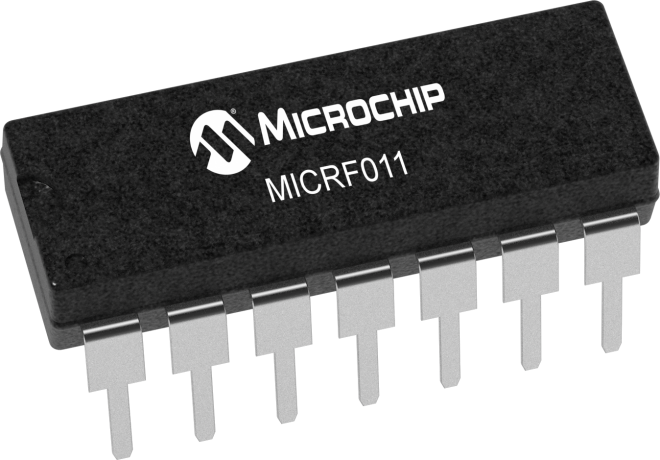

product primary image

MICRF011

Status: In Production

Features:

  • Complete UHF receiver on a monolithic chip
  • Frequency range 300 to 440 MHz
  • Typical range over 200 meters with monopole antenna
  • Data rates to 2.5kbps (SWP), 10kbps (FIXED)
  • Automatic tuning, no manual adjustment
  • No filters or inductors required
  • Low operating supply current - 2.4 mA at 315MHz
  • Fully pin-compatible with MICRF001
  • Very low RF re-radiation at the antenna
  • Direct CMOS logic interface to standard decoder and microprocessor ICs
  • Extremely low external part count
  • Garage Door / Gate openers
  • Security Systems
  • Remote Fan / Light Control
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MICRF011 is a single chip OOK (ON-OFF Keyed) Receiver IC for remote wireless applications, employing QwikRadio technology. This device is a true “antenna-in, data-out” monolithic device. All RF and IF tuning is accomplished automatically within the IC, which eliminates manual tuning and reduces production costs. Receiver functions are completely integrated. The result is a highly reliable yet extremely low cost solution for high volume wireless applications. Because the MICRF011 is a true single-chip radio receiver, it is extremely easy to apply, minimizing design and production costs, and improving time to market.

Additional Features
    • Complete UHF receiver on a monolithic chip
    • Frequency range 300 to 440 MHz
    • Typical range over 200 meters with monopole antenna
    • Data rates to 2.5kbps (SWP), 10kbps (FIXED)
    • Automatic tuning, no manual adjustment
    • No filters or inductors required
    • Low operating supply current - 2.4 mA at 315MHz
    • Fully pin-compatible with MICRF001
    • Very low RF re-radiation at the antenna
    • Direct CMOS logic interface to standard decoder and microprocessor ICs
    • Extremely low external part count
    • Applications
      • Garage Door / Gate openers
      • Security Systems
      • Remote Fan / Light Control
Parametrics
Name
Value
Type
OOK Receiver IC
Pin Count
14
Packages
DIP, SOIC
RF Receiver
Yes
Operating Temperature
-40C to +85C
RF Data Rate (Kbps)
2.5
Frequency Range
300MHz-440MHz

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MICRF011YM
0.143200
0.280702
14
SOIC
.1China RoHs 50.pngIn(3.90mm)
Matte Tin
e3
MICRF011YM-TR
0.143200
0.325000
14
SOIC
.1China RoHs 50.pngIn(3.90mm)
Matte Tin
e3
MICRF011YN
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
