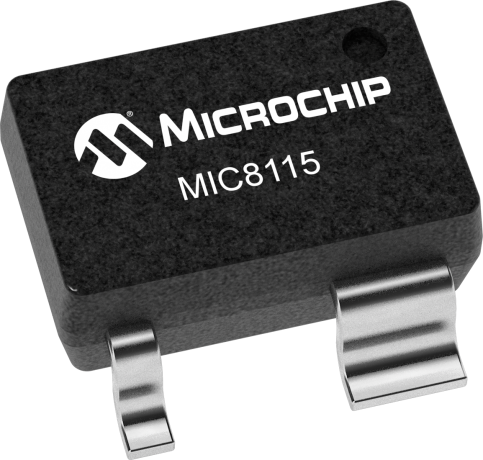

product primary image

MIC8115

Microprocessor Reset Circuit with Manual Reset, Push-Pull Active-Low Output, 3.0 Vthresh

Status: In Production

Features:

  • Precision voltage monitor for 3.3V power supplies
  • Specifically tailored to the AMD Elan SC500 Series
  • /RESET remains valid with VCC as low as 1V
  • 5µA typical supply current
  • 1100ms minimum reset pulse width
  • Manual reset input
  • Available in 4-Pin SOT-143 Package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC8115 is an inexpensive microprocessor supervisory circuit that monitors power supplies in microprocessor based systems.

The function of this device is to assert a reset if the power supply drops below a designated reset threshold level or /MR is forced low.

The MIC8115 has an active low /RESET output. The reset output is guaranteed to remain asserted for a minimum of 1100ms after VCC has risen above the designated reset threshold level. The MIC8115 comes in a 4-pin SOT-143 package.

Additional Features
    • Precision voltage monitor for 3.3V power supplies
    • Specifically tailored to the AMD Elan SC500 Series
    • /RESET remains valid with VCC as low as 1V
    • 5µA typical supply current
    • 1100ms minimum reset pulse width
    • Manual reset input
    • Available in 4-Pin SOT-143 Package
Parametrics
Name
Value
Product Type
Supervisor
Manual Reset
Yes
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
3.08
Reset Type
Active Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
1100
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets

08/25/2017
332KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC8115TUY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
