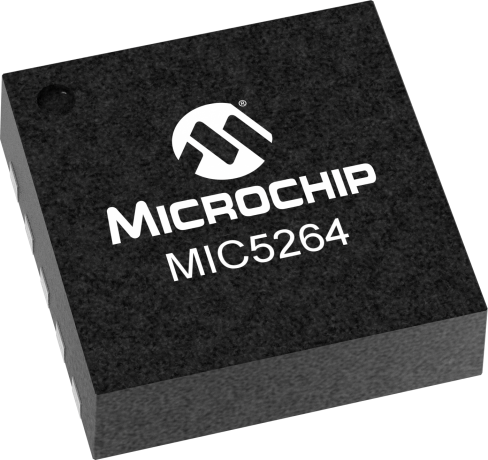

MIC5264

150mA uCap Dual LDO Regulator

Status: In Production

Features:

  • 2.7V to 5.5V supply voltage
  • Low 90µA quiescent current per LDO
  • Low noise: 57µVrms
  • High PSRR: 70dB at 1kHz
  • Low dropout voltage: 210mV at 150mA
  • Stable with ceramic output capacitors
  • Independent enable pins
  • Fast transient response
  • Active shutdown on both outputs
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5264 is ideal for any application in portable electronics, including both RF and digital applications. With good output noise and high PSRR, the MIC5264 is ideal for noise sensitive RF applications. While the fast transient response and active shutdown circuitry makes it well-suited for powering digital circuitry.

The MIC5264 has a 2.7V to 5.5V input operating voltage range, making it ideal for operation from a single-cell lithium ion battery or fixed 3.3V and 5V systems. Each LDO is completely independent and can be powered independently, making it easier to use in distributed power applications.

The MIC5264 offers low dropout voltage (210mV at 150mA), low noise (57µVrms), high PSRR, and integrates an active shutdown circuit on the output of each regulator to discharge the output voltage when disabled.

Additional Features
    • 2.7V to 5.5V supply voltage
    • Low 90µA quiescent current per LDO
    • Low noise: 57µVrms
    • High PSRR: 70dB at 1kHz
    • Low dropout voltage: 210mV at 150mA
    • Stable with ceramic output capacitors
    • Independent enable pins
    • Fast transient response
    • Active shutdown on both outputs
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
150
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
2.7
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
210
IGND Typ (µA)
75
Tol Typ %
±2
Noise (µV) rms
57
PSRR 1 kHz (dB)
64
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
332KB

Development tools data is currently unavailable.
