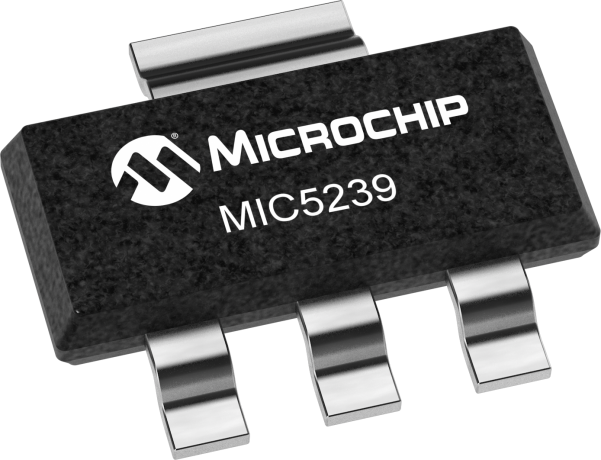

product primary image

MIC5239

Low Quiescent Current 500mA uCap LDO

Status: In Production

Features:

  • Ultra-low quiescent current (IQ = 23µA @ IO = 100µA)
  • Continuious 500mA output current
  • Wide input range: 2.3V to 30V
  • Low dropout voltage: 350mV at 500mA
  • ±1.0% initial output accuracy
  • Stable with ceramic or tantalum output capacitor
  • Logic-compatible enable input
  • Low output voltage error flag indicator
  • Overcurrent protection
  • Thermal shutdown
  • Reverse leakage protection
  • Reverse battery protection
  • High power SOIC-8, MSOP-8 and SOT-223 packages
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5239 is a low quiescent current, µCap low-dropout regulator. With a maximum operating input voltage of 30V and a quiescent current of 23µA, it is ideal for supplying keep-alive power in systems with high voltage batteries.

Capable of 500mA output, the MIC5239 has a dropout voltage of only 350mV. It can provide high output current for applications such as USB.

As a µCap LDO, the MIC5239 is stable with either a ceramic or a tantalum output capacitor. It only requires a 3.3µF output capacitor for stability.

The MIC5239 includes a logic-compatible enable input and an undervoltage error flag indicator. Other features of the MIC5239 include thermal shutdown, current limit, overvoltage shutdown, reverse leakage protection, and reverse battery protection.

Available in the thermally enhanced SOIC-8, MSOP-8, and SOT-223 packages, the MIC5239 comes in fixed 3.0V and adjustable voltages.

Additional Features
    • Ultra-low quiescent current (IQ = 23µA @ IO = 100µA)
    • Continuious 500mA output current
    • Wide input range: 2.3V to 30V
    • Low dropout voltage: 350mV at 500mA
    • ±1.0% initial output accuracy
    • Stable with ceramic or tantalum output capacitor
    • Logic-compatible enable input
    • Low output voltage error flag indicator
    • Overcurrent protection
    • Thermal shutdown
    • Reverse leakage protection
    • Reverse battery protection
    • High power SOIC-8, MSOP-8 and SOT-223 packages
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.3
VIN Max (V)
30
VOUT (V)
1.5, 1.8, 2.5, 3.0, 3.3, 5.0, Adj
Voltage Drop Typ (mV)
350
IGND Typ (µA)
23
Tol Typ %
±1
Noise (µV) rms
160
PSRR 1 kHz (dB)
50
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect
Yes

Documents

Jump to:

Data Sheet

11/05/2015
767KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5239-3.0YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-5.0YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-1.8YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-2.5YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-1.8YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-1.5YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-3.3YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-2.5YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-1.5YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-3.0YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-3.3YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239YMM
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-5.0YMM-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
MIC5239-2.5YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-2.5YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-1.8YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-5.0YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-1.8YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-1.5YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-1.5YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-3.3YM
0.078000
0.180842
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-5.0YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-3.3YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239YM-TR
0.078000
0.238400
8
SOIC
3.9mm
NiPdAu
e4
MIC5239-5.0YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-2.5YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC5239-3.3YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC5239-3.0YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-5.0YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC5239-2.5YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-3.3YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-3.0YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC5239-1.5YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-1.5YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
MIC5239-1.8YS
0.123000
0.243590
3
SOT-223
-
Matte Tin
e3
MIC5239-1.8YS-TR
0.123000
0.440000
3
SOT-223
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
