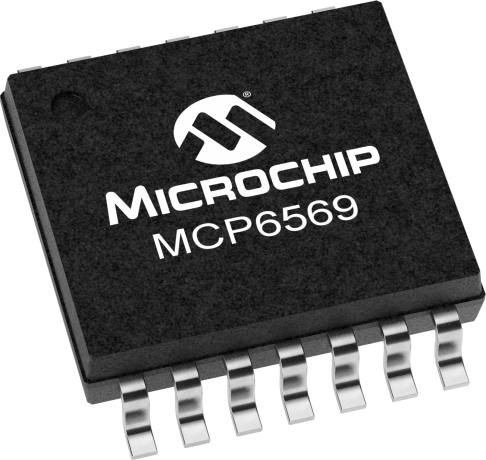

product primary image

MCP6569

Status: In Production

Features:

  • Quad, Open Drain Outputs
  • 47ns Propogation Delay
  • Low Operating Voltage, 1.8V to 5.5V
  • Low Operating Current, 100uA (typical)
  • Small 14-pin TSSOP Package
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The open drain output of the MCP6566/7/9 family with a pull-up resistor, can be used as a level shifter for any desired voltage from 1.6V to 5.5V. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Quad, Open Drain Outputs
    • 47ns Propogation Delay
    • Low Operating Voltage, 1.8V to 5.5V
    • Low Operating Current, 100uA (typical)
    • Small 14-pin TSSOP Package
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp Range (°C)
-40°C to +125°C
IQ Typical (µA))
100
Vos Max (µV)
10000
Typical Propagation Delay (ns)
47
# per Package
4
Operating Voltage Range (V)
1.8 to 5.5

Documents

Jump to:

Data Sheet

11/11/2014
1319KB

Product Line Card

Spice Model


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6569-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6569T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6569-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6569T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
