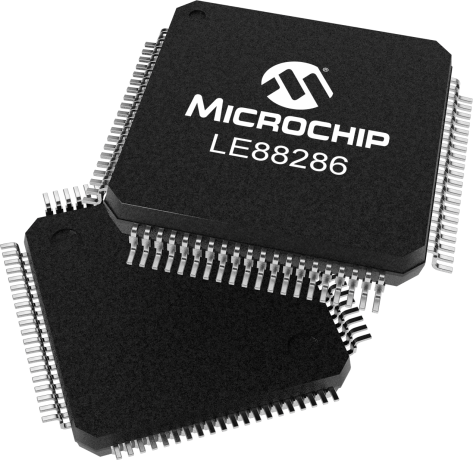

product primary image

LE88286

Dual Ch FXS 120V Wideband ABS VoicePort

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le88286 Automatic Battery Switching (ABS) VoicePort device implements a dual-channel telephone line interface by providing all the necessary voice interface functions from the high voltage subscriber line to the µP/DSP digital interface. The ABS device can operate from external battery supplies, or from supplies generated by the on-chip switching regulator controllers. This device reduces system level cost, space, and power. Designers benefit by having a simple, cost effective, low-power and dense, interface design without sacrificing features or functionality. The programmable, feature rich VoicePort device provides a highly functional line interface which meets the requirements of short and medium loop (up to 1500 Ohms total at 1 REN) applications. Features include: high voltage switching regulator, self-test, line test capabilities, integrated ringing (up to 110-Vpk), worldwide software programmability with wideband capability, flexible signal generator with tone cadencing and caller ID generation. These VoicePort device features are crucial for designing cost-effective, full-featured Voice over Broadband solutions.

Please consider this device LE9622

Additional Features
  • Complete BORSCHT function for 2 channels in a single VoicePort device
    • Battery Feed, Over-voltage support, integrated Ringing, line Supervision, Codec, Hybrid (2W/4W), Test
  • Integrated Power Management
    • Integrated high voltage switching regulator controller
    • Wide input voltage range (VSW = +4.75 V to +35 V)
    • Generates supplies for VBH, VBM & VBL
    • Low power Idle and On-hook transmission states
  • Worldwide Programmability
    • Two-wire AC impedance, Balance Impedance, Gain
    • DC feed voltage and current limitRinging frequency, voltage and current limit
    • 12 kHz and 16 kHz Metering
    • Programmable loop closure and ring trip thresholds
  • Ringing
    • 5 REN with pin for pin compatible 100-V (Le88266) and 120-V (Le88286) devices
    • Up to 110-Vpk internal balanced sinusoidal or trapezoidal ringing with programmable DC offset
  • Powerful signal generator
    • Universal Caller ID generation
    • Up to 4 simultaneous tones
    • Automatic cadencing feature
  • VoicePath API-II Software available to implement FXS functions
    • Supports device calibration
    • Line configuration via VoicePath Profile Wizard
  • VeriVoice Test Suite Subscriber Loop Test
    • Seamless integration with API-II software
    • Utilizes integrated self test capabilities
    • Line fault detection and reporting
  • Pin selectable PCM/MPI or GCI interface
  • G.711 µ-law, A-law, or 16 bit linear coding
  • Wideband 16 kHz sampling mode
  • Integrated 150 mW 3-V Relay Driver
    • External catch diode required
  • Small footprint package - Exposed pad 80-pin LQFP
  • Minimal external discrete components required
Parametrics
Name
Value
Application
Broadband Gateway FXS
Series
VE880
Loop Length
Short
Battery Topology
Shared
SOC Interface
PCM/SPI
Output Voltage (V) max
120
Number of Ports
2
Release
True

Documents

Jump to:

Data Sheets


1380KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE88286TQC
0.244500
1.207692
64
VQFN
9x9x1mm
Matte Tin
e3
LE88286TQCT
0.244500
0.600000
64
VQFN
9x9x1mm
Matte Tin
e3
LE88286DLC
0.690100
0.633333
80
LQFP
14x14x1.4mm
Matte Tin
e3
LE88286DLCT
0.690100
1.510000
80
LQFP
14x14x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
