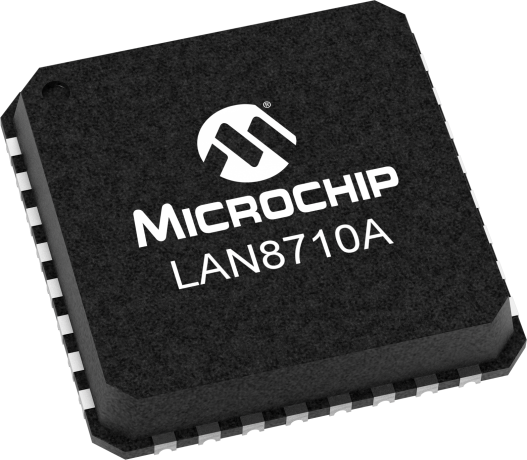

LAN8710A

10/100 Base-T/TX Ethernet Transceiver with MII/RMII Interface

Status: In Production

Features:

  • Integrated 1.2V linear regulator
  • Up to 40% reduction from existing Microchip solutions
  • Flexible I/O voltage range from 3.6V to 1.6V
  • Extremely low energy detect standby mode
  • Low-Cost 25MHz crystal for MII/RMII
  • Industrial and extended commercial temperature range options available
  • LAN8710A: 5x5mm 32-pin QFN package (MII/RMII)
  • *NOTE: The package suffix ''-ABC'' indicates a Sawn QFN (SQFN) package.  This is the recommended package
  • High-definition TV (HDTVs)
  • Set-top Boxes (STBs)
  • Digital Video Recorders (DVRs)
  • Personal Video Recorders (PVRs)
  • Network Printers and Servers
  • Gaming Consoles
  • Telecommunications
  • POS Terminals
  • Industrial
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's LAN8710A/LAN8710Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications. The LAN8710A/LAN8710Ai are the industry's smallest footprint solution with up to 40% lower power consumption than existing Microchip transceivers. The LAN8710A/LAN8710Ai have an integrated voltage regulator and ESD protection components to help reduce Bill of Material (BOM) costs.

The LAN8710A/LAN8710Ai connect to the MAC layer using a variable voltage, digital standard MII or RMII interface, These devices support HP Auto-MDIX†, employ Microchip's proprietary flexPWR technology and are available in both extended commercial (0° to 85°C) and industrial (-40° to 85°C) temperature range options.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in*.

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.








*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.


Additional Features

    Highlights

    • Integrated 1.2V linear regulator
    • Incorporates flexPWR® technology
      • Industry leading power consumption
        • Up to 40% reduction from existing Microchip solutions
      • Flexible I/O voltage range from 3.6V to 1.6V
      • Extremely low energy detect standby mode
    • Low-Cost 25MHz crystal for MII/RMII
    • Industrial and extended commercial temperature range options available
    • Compact package options:
      • LAN8710A: 5x5mm 32-pin QFN package (MII/RMII)
      • *NOTE: The package suffix '-ABC' indicates a Sawn QFN (SQFN) package.  This is the recommended package

    Target Applications

    • High-definition TV (HDTVs)
    • Set-top Boxes (STBs)
    • Digital Video Recorders (DVRs)
    • Personal Video Recorders (PVRs)
    • Network Printers and Servers
    • Gaming Consoles
    • Telecommunications
    • POS Terminals
    • Industrial



Parametrics
Name
Value
Description
Small Footprint, Low Power Consumption, Full-Featured 10/100 Ethernet Transceivers
Ethernet Bandwidth
10/100Mbps
LEDs
4
# of Ethernet Ports
1
Interface
MII/RMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
HP-Auto MDIX
Yes
Interface1
MII/RMII
Ethercat
Yes
Copper Support
Yes
Supply Voltage (V)
3.3
Internal Regular
Yes
MAC I/O Voltage
1.8/3.3

Documents

Jump to:

Board Design Files

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
LAN8710A High-Speed 10/100 Ethernet Transceiver Customer Evaluation Board
LAN8710A High-Speed 10/100 Ethernet Transceiver Customer Evaluation Board ( EVB8710 )

The EVB8710 is a PHY Evaluation Board EVB that interfaces a MAC controller to the LAN8710 Ethernet PHY via a standard 40-pin MII connector. The LAN8710 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.

Learn More
Add To Cart
