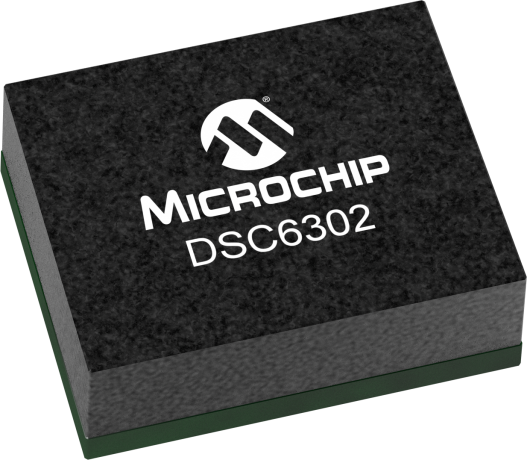

The DSC6302 family of devices is the industry’s smallest and lowest-power spread-spectrum MEMS oscillators. Available in four different package sizes with operation as low as 3 mA the smallest 4-pin package is a mere 1.6 x 2 mm in size. The devices support up to ±2.5% or -3% spread spectrum that can achieve up to 15 dB Electro-Magnetic Interference (EMI) reduction. Because of industry standard package and pin options, customers can solve last minute EMI problems simply by putting the new DSC6302 on their current board layout with no redesign required.

The DSC6302 family is available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package sizes include: 2.5 mm x 2.0 mm and 3.2 mm x 2.5 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal.

• Output Frequency: 1 – 100MHz LVCMOS
• Spread Spectrum options:
  • Center spread:  ±0.25%, ±0.5%, ±1.0%, ±1.5%, ±2.0%, ±2.5%,
  • Down spread: -0.25%, -0.5%, -1.0%, -1.5%, -2.0%, -3.0%
• Pin 1 = OE (Output Enable)
• High output drive strength at 25 pf
• Ultra-low power consumption: 3mA (active), 10 µA stdby
• Wide supply voltage range: 1.71V -3.63V V_DD
• Ultra-small package size: 1.6 x 1.2 mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
• Support Industrial temperature range:  -40 to +85ºC
• Excellent shock and vibration immunity
• High reliability
• Lead free and RoHS compliant
