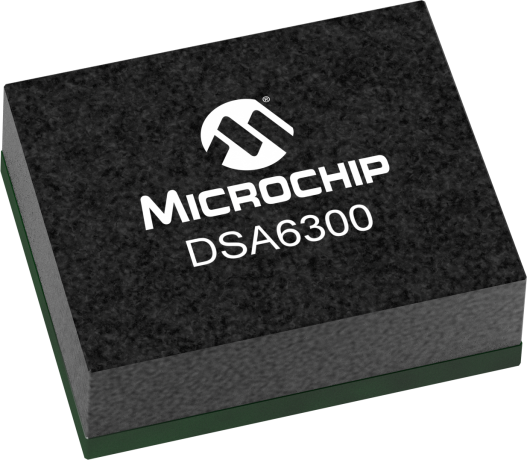

product primary image

DSA6300

Automotive Spread Spectrum MEMS oscillator

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The DSA63XX is part of Automotive MEMS oscillator family that offers wide range of spread spectrum clock output for EMI reduction. The devices support up to ±2.5% or -3% spread spectrum that can achieve up to 15 dB Electro-Magnetic Interference (EMI) reduction on fundamental frequency (more on high harmonics) . Because of industry standard package and pin options, customers can solve last minute EMI problems simply by putting the new DSA63XX on their current board layout with no redesign required.

The DSA63xx family is available in ultra-small 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm and 2.5 mm x 2.0 mm packages. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool

Additional Features
  • AEC-Q100 qualified
  • Output Frequency: 1 – 100MHz LVCMOS
  • Spread Spectrum options:
    • Center spread: ±0.25%, ±0.5%, ±1.0%, ±1.5%, ±2.0%, ±2.5%,
    • Down spread: -0.25% , -0.5%, -1.0%, -1.5%, -2.0%, -3.0%
  • Ultra-low power consumption: 3mA (active), 1.5 µA stdby
  • Wide supply voltage range: 1.71V -3.63V VDD
  • Ultra-small package size: 1.6 x 1.2 mm, 2.0x1.6mm, 2.5x2.0mm
  • Operating Temperature Range
    • Automotive Grade 1: -40°C to 125°C
    • Automotive Grade 2: -40°C to 105°C
    • Automotive Grade 3: -40°C to 85°C
  • Excellent shock and vibration immunity
  • High reliability
  • Lead free and RoHS compliant
Parametrics
Name
Value
Sub Group 1
Spread Spectrum Oscillator
Supply Voltage (V)
1.71 - 3.63
Output Type
Single-ended
Output Frequency Min (MHz)
1
Output Frequency Max (MHz)
100
# of Outputs
1
Period Jitter (Pk-Pk)
11
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets


827KB

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSA6331HI2AB-012.0000VAO
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSA6331HI2AB-012.0000TVAO
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSA6331HI2AB-025.0000VAO
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSA6331HI2AB-025.0000TVAO
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSA6331JA1BB-100.0000TVAO
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSA6331JA1CB-100.0000TVAO
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
