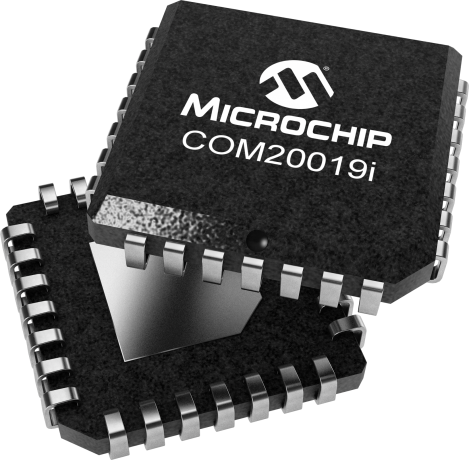

COM20019i

Status: In Production

Features:

  • Data Rates up to 312.5 Kbps
  • Programmable Reconfiguration Times
  • 28 Pin PLCC RoHS Compliant Package
  • Ideal for Industrial/Factory/Building Automation and Transportation Applications
  • Deterministic (ANSI 878.1) Token-Passing ARCNET Protocol
  • Minimal Microcontroller and Media Interface Logic Required
  • Flexible for Use With All Microcontrollers or Microprocessors
  • Automatically Detects Type of Microcontroller Interface
  • 2K x 8 On-Chip Dual Port RAM
  • Command Chaining for Packet Queuing
  • Sequential Access to Internal RAM
  • Software Programmable Node ID
  • Eight 256-Byte Pages Allow Four Pages TX and RX Plus Scratch-Pad Memory
  • Next ID Readable
  • Internal Clock Scaler for Adjusting Network Speed
  • Operating Temperature Range of -40°C to +85°C
  • Self-Reconfiguration Protocol
  • Supports up to 255 Nodes
  • Supports Various Network Topologies (Star, Tree, Bus...)
  • CMOS, Single +5V Supply
  • Duplicate Node ID Detection
  • Powerful Diagnostics
  • Receive All Packets Mode
  • RS485 Differential Driver Interface for Low Cost, Low Power, High Reliability
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's COM20019I is a member of the family of Embedded ARCNET Controllers from Standard Microsystems Corporation. The device is a general purpose communications controller for networking microcontrollers and intelligent peripherals in industrial, automotive, and embedded control environments using an ARCNET protocol engine. The flexible microcontroller and media interfaces, eight-page message support, and extended temperature range of the COM20019I make it the only true network controller optimized for use in industrial, embedded, and automative applications. Using an ARCNET protocol engine is the ideal solution for embedded control applications because it provides a token-passing protocol, a highly reliable and proven networking scheme, and a data rate of up to 312.5 Kbps when using the COM20019I.

SOHARD ARCNET Analyzer "SH ARCALYZER-USB" (PCMCIA also available) by clicking this link.





SOHARD ARCNET Analyzer "SH ARCALYZER-USB" (PCMCIA also available)

Additional Features

    Features

    • New Features
      • Data Rates up to 312.5 Kbps
      • Programmable Reconfiguration Times
    • 28 Pin PLCC RoHS Compliant Package
    • Ideal for Industrial/Factory/Building Automation and Transportation Applications
    • Deterministic (ANSI 878.1) Token-Passing ARCNET Protocol
    • Minimal Microcontroller and Media Interface Logic Required
    • Flexible for Use With All Microcontrollers or Microprocessors
    • Automatically Detects Type of Microcontroller Interface
    • 2K x 8 On-Chip Dual Port RAM
    • Command Chaining for Packet Queuing
    • Sequential Access to Internal RAM
    • Software Programmable Node ID
    • Eight 256-Byte Pages Allow Four Pages TX and RX Plus Scratch-Pad Memory
    • Next ID Readable
    • Internal Clock Scaler for Adjusting Network Speed
    • Operating Temperature Range of -40°C to +85°C
    • Self-Reconfiguration Protocol
    • Supports up to 255 Nodes
    • Supports Various Network Topologies (Star, Tree, Bus...)
    • CMOS, Single +5V Supply
    • Duplicate Node ID Detection
    • Powerful Diagnostics
    • Receive All Packets Mode
    • Flexible Media Interface:
      • RS485 Differential Driver Interface for Low Cost, Low Power, High Reliability
Parametrics
Name
Value
Standalone Arcnet Cntrl
N/A
MAC
Yes
TX/RX RAM Buffer(Bytes)
16K
Deterministic Protocola (Token Passing)
Yes
Operating Voltage (V)
5V
Max Speed (MHz)
312.5 Kbps
Interface
RS485
Temp Range Min (°C)
-40
Temp Range Max (°C)
85
Comments
+5V Arcnet Controller with On-Chip-RAM

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$6.27
$13.91
$15.80
$25.84
$13.37
$11.91
$12.36
$6.74

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
COM20019I3V-HT
0.176300
0.760000
48
TQFP
7x7x1.4mm
Matte Tin
e3
COM20019I-DZD
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
COM20019I-DZD-TR
1.142500
1.733333
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
