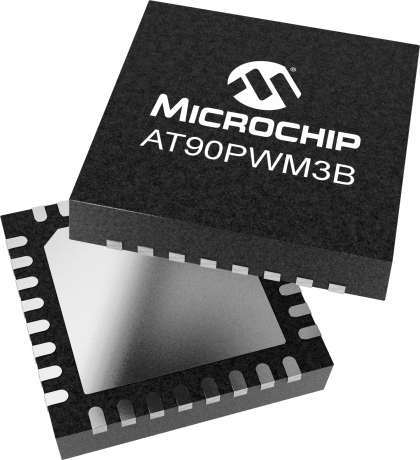

product primary image

AT90PWM3B

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Specially designed for lamp ballast and motor control applications, the 8-bit AVR RISC-based microcontroller featuring 8Kbytes of ISP read-while-write flash, 512-byte EEPROM, 512-byte SRAM, 10-channel advanced PWM, 11-channel 8-bit ADC, a 10-bit DAC,four software selectable power saving mode, two or three 12-bit high speed power stage controllers with 4-bit resolution enhancement, and DALI protocol support. Operating voltage is 2.7V - 5.5V.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
8
CPU Speed (MIPS/DMIPS)
16
Data EEPROM/HEF (bytes)
512
Digital Communication Peripherals
1-UART, 1-SPI,
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 16PWM
Number of Comparators
3
Temperature Range (C)
-40 to 105
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
32

Documents

Jump to:

Data Sheets

Application Notes

Download All

Device Documentation

12/10/2016
2468KB

User Guides

06/01/2006
114KB

White Papers

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATSTK600 Kit
ATSTK600 Kit ( ATSTK600 )

A complete starter kit and development system for the 8-bit and 32-bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs.

The AVR device connects to the STK600 using an innovative routing and socketcard sandwich system, which routes the signals from the device to the appropriate...

Learn More
Add To Cart
Atmel-ICE Full Kit
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
Add To Cart
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
24
8
0
$1.65

20
16
1
$1.80

24
16
1
$2.36

24
8
0
$2.20

32
16
1
$1.96

32
8
0
$2.03

20
8
0
$1.64


RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT90PWM3B-16MUR
0.136600
0.071750
32
VQFN
7x7x1mm
Matte Tin
e3
Rohs icon
efup china icon
AT90PWM3B-16MU
0.136600
0.757692
32
VQFN
7x7x1mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
