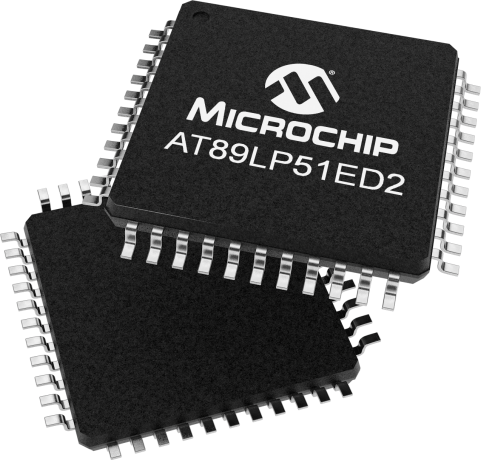

AT89LP51ED2

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Single-cycle microcontroller with 64KB ISP flash and 12-clock compatibility mode. It includes 4KB EEPROM data memory, 2304 bytes RAM, 2KB ROM with UART-based Bootloader, PWM, UART, TWI, SPI, PCA, up to 42 I/Os, 10-bit A/D, dual Analog Comparators, an internal 8 MHz RC oscillator, and on-chip debug. The TWI and On-Chip Debug features are not available on 40-pin PDIP package.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
20
SRAM (KB)
2
Data EEPROM/HEF (bytes)
4096
Digital Communication Peripherals
1-UART, 1-SPI, 1-I2C
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
2.4 to 5.5
Pin Count
44

Documents

Jump to:

Application Notes

Download All

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
maXTouch Xplained Pro
maXTouch Xplained Pro ( ATMXT-XPRO )
(Not Recommended for new design)

maXTouch Xplained Pro is an extension board in the Xplained Pro evaluation platform. The board enables the user to experiment with user interface applications with maXTouch and LCD.
Xplained Pro evaluation kits that can communicate with maXTouch Xplained Pro can be purchased individually.

For compatible Xplained Pro Evaluation kits see the Related Tools tab.

Learn More
Add To Cart
