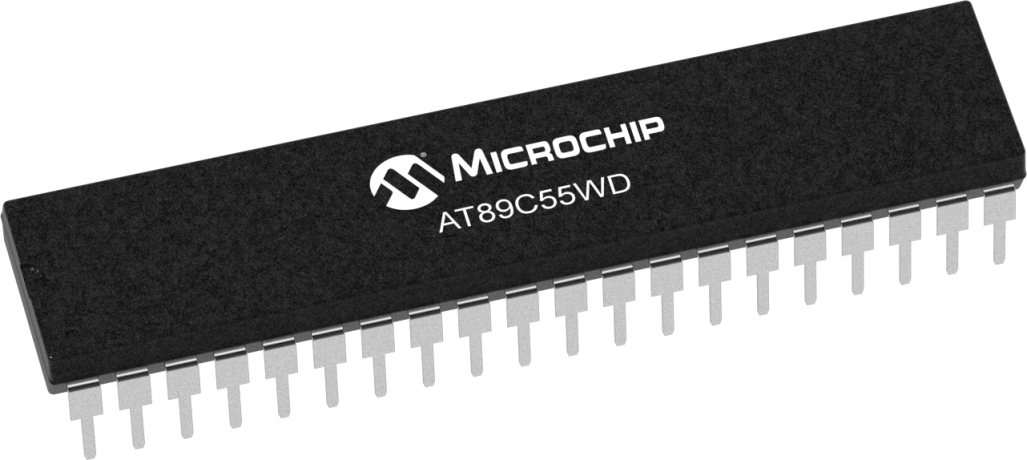

product primary image

AT89C55WD

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low-power, high-performance CMOS 8-bit microcontroller with 20KB of flash programmable ROM and 256 bytes of RAM. The device is manufactured using Microchip high-density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. On-chip flash allows the program memory to be user programmed by a conventional nonvolatile memory programmer.

This versatile 8-bit CPU with flash is a highly flexible and cost-effective solution for many embedded control applications.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
20
CPU Speed (MIPS/DMIPS)
4
Digital Communication Peripherals
1-UART,
Temperature Range (C)
0 to 0
Operating Voltage Range (V)
4 to 6
Pin Count
44

Documents

Jump to:

Data Sheet

Application Notes

Download All

Brochures

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89C55WD-24AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
AT89C55WD-24AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
AT89C55WD-24JU
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89C55WD-24JUR
2.375500
3.400000
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89C55WD-24PU
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
