Aerospace and Defense MEMS Oscillators

Military-Grade-Temperature MEMS Oscillators

The HTM61xx family of MEMS oscillators has been designed for military applications and ruggedized equipment. These low-power MEMS oscillators:

• Have exceptional frequency stability for up to 125°C
• Comply with the MIL-STD-883 and MIL-STD-202 standards
• Are available in ultra-small packages, from 1.6 mm × 1.2 mm to 7.0 mm × 5.0 mm, to replace 4-pin CMOS quartz crystal oscillators

Low-Power, Military-Grade MEMS Oscillators

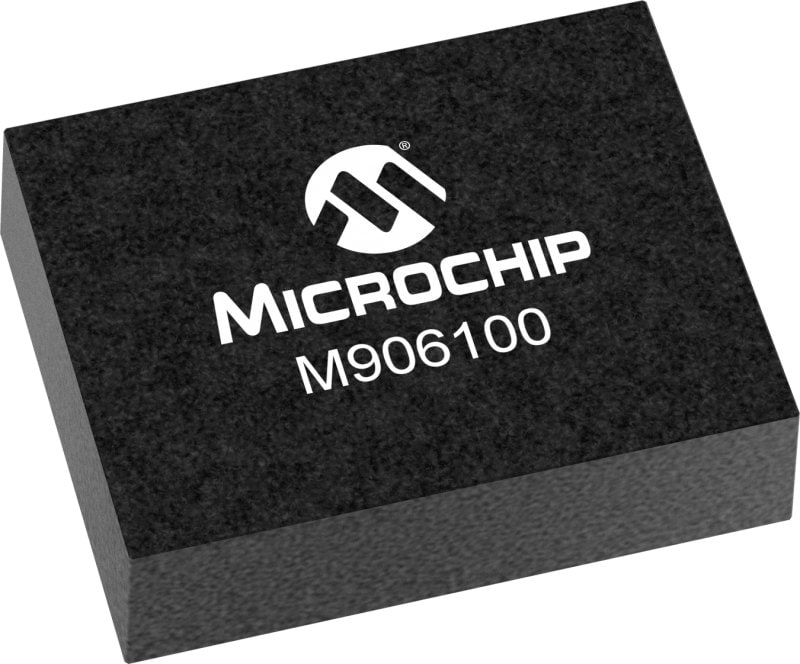

The low-power M9061xx family of MEMS oscillators has exceptional frequency stability. These MEMS oscillators:

• Offer power consumption as low as 3.6 mA
• Have exceptional frequency stability and jitter performance over temperature
• Comply with the MIL-STD-883 and MIL-STD-202 standards
• Are available in ultra-small packages, from 1.6 mm × 1.2 mm to 7.0 mm × 5.0 mm, to replace standard 4-pin CMOS quartz crystal oscillators

2.5–170 MHz High-Performance, CMOS Military-Grade MEMS Oscillators

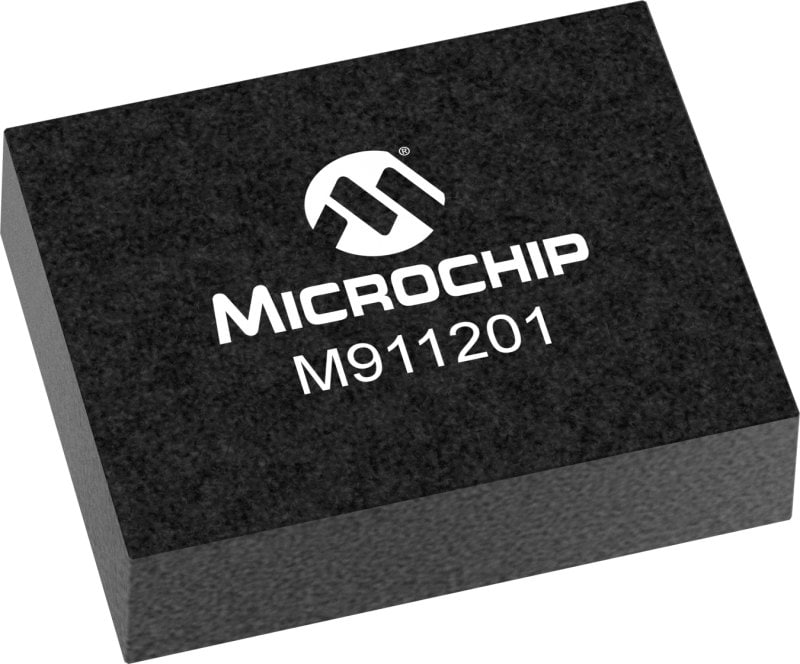

The M9112x1 family of MEMS oscillators uses the latest silicon MEMS technology for improved phase noise and excellent jitter and stability over a wide range of voltages and temperatures. These MEMS oscillators:

• Comply with the MIL-STD-883 and MIL-STD-202 standards
• Are available in packages as small as 2.5 mm × 2.0 mm, to replace standard 4-pin and 6-pin CMOS quartz crystal oscillators

2.5–450 MHz High-Performance, Differential Military-Grade MEMS Oscillators

The M9112x2/3 family of MEMS oscillators provides a differential MEMS oscillator (either LVPECL or LVDS) with improved phase noise and excellent jitter stability over a wide range of voltages and temperatures. These oscillators:

• Comply with the MIL-STD-883 and MIL-STD-202 standards
• Are available in one of the smallest differential oscillator packages in the market—2.5 mm × 2.0 mm to replace standard 4-pin and 6-pin CMOS quartz crystal LVPECL/LVDS oscillators
