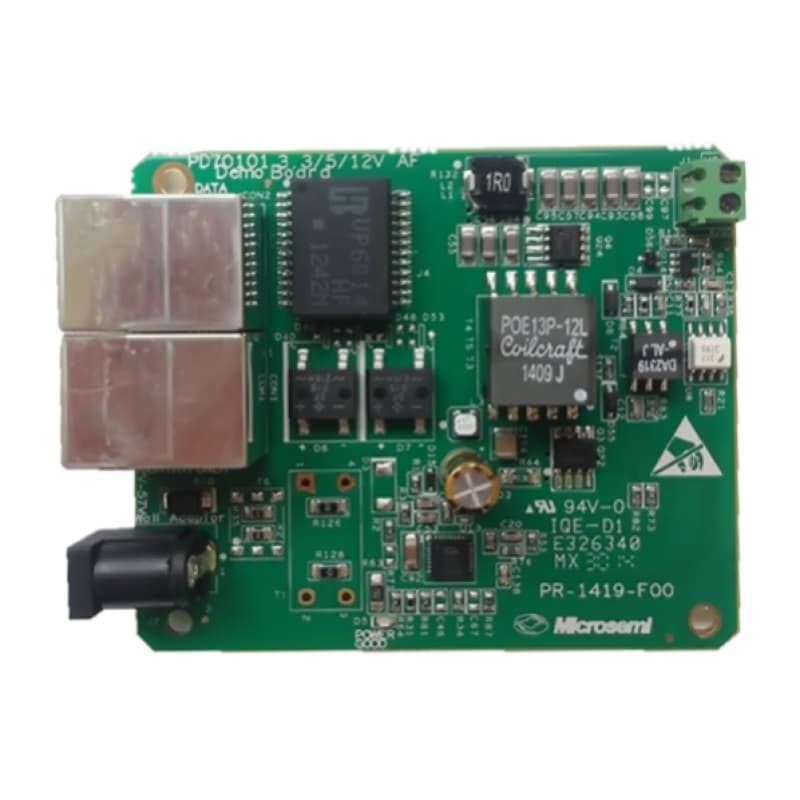

Part Number: PD70101EVB6F

PD WITH PD70101 5V 1.2A, FB


  • Featuring PD70101
  • IEEE 802.3af/at standard compliant 6W - 5V / 1.2A output voltage / current
  • Flyback topology
  • Designed to support one PD-chip application (2-pairs)
  • Two RJ45 connectors (data and power in, data out)
  • Optional wall adapter – DC in connector
  • Output voltage connector
  • On board LED indicator
  • Pulse transformers and common mode chocks
  • Evaluation board working temperature: 0°C to +70°C
  • RoHS compliant
  • Optional standby circuitry
  • RoHS compliant

Overview


The PD70101EVB6F evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70101 PD-chip. The evaluation board enables PD designers to evaluate Microchip's PD-chip solution.

Documentation


Title
Document Id
PD70101EVB6F Design Files Download 598d4687-e7fd-41f7-9bfa-c7c9a8fd2ac5
PD70101EVB3F/6F/15F5/15F12 User Guide Download 130c327d-d3aa-4234-9035-5d8294ea10f3
