Part Number: EVB-USB3320

USB TRANSCEIVER W/ULPI INTERFACE EVALUATION BOARD

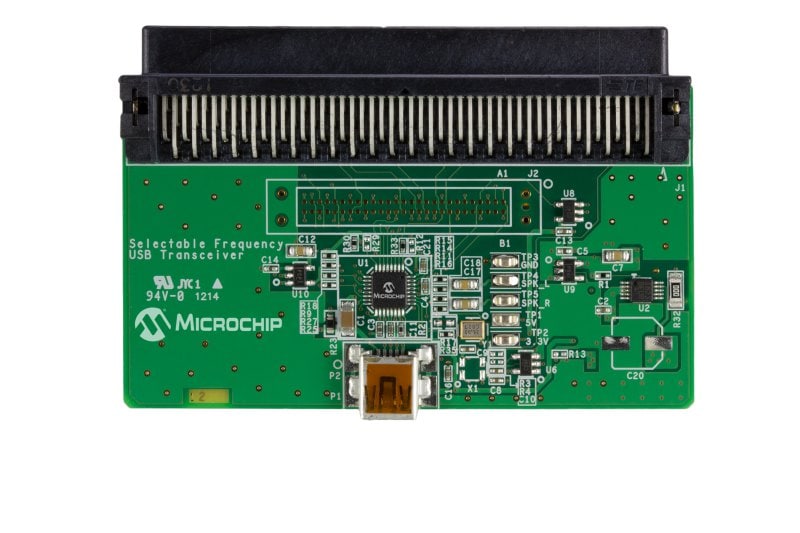

USB Transceiver w/ULPI Interface Evaluation Board

Overview

This product is no longer available for sale.

The USB3320 is a highly integrated full featured Hi-Speed USB 2.0 transceiver based on our proven ULPI interface. The USB3320 provides an extremely flexible solution in a convenient 5x5mm QFN package. It supports a wide variety of different reference clock frequencies with one single part, as well as accepting clocking from crystal/resonators and the ULPI 60MHz Clock-In mode. As with previous generations of our USB transceivers, the USB3320 integrates a USB switch and both ESD and VBUS over-voltage protection devices.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-USB3320 OrCAD Download 1f7b9fc9-6112-41e9-8ee3-4a4461b9787f
EVB-USB3320 Gerber Download 743bc24e-1505-4598-88d6-ca8863472f67
EVB-USB3320 Evaluation Board Schematic Download 2c10533e-af33-4d22-87f1-83c18a3ebe5c
EVB-USB3320 Evaluation Board Bill of Materials Download e9db53b1-ce8f-42e4-b73d-7b3cef232425
EVB-USB3320 Evaluation Board User Manual Download a1b84c70-962d-4cf7-9519-efc658b46d33
