Part Number: EVB-LAN7800LC-1

EVB-LAN7800LC-1 EVALUATION BOARD

View Purchasing Options
Contact Us

Overview

EVB-LAN7800LC1 is full featured Evaluation Board that utilizes LAN7800 to provide a fully functional, bus-powered USB Type A to Gigabit Ethernet interface.

  • USB3 Gen1 device
  • USB Type A Connector
  • 10/100/1000Mbps Ethernet
  • Programmable LEDs

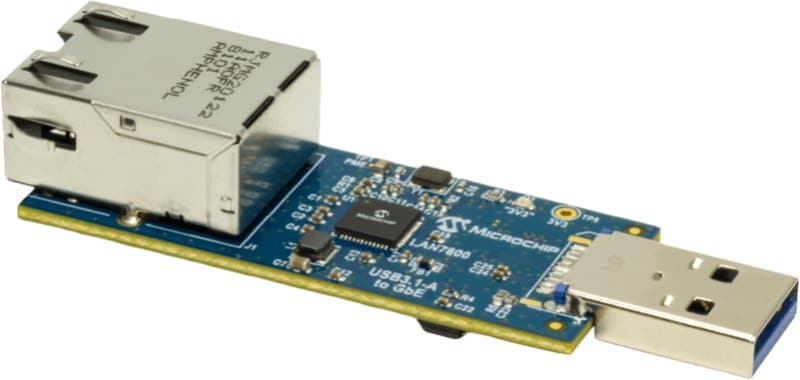

EVB-LAN7800LC-1 board

Host platform with USB3 Gen1 / USB A socket

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
EVB-LAN7800LC-1 Gerber Files Board Design Files Download
EVB-LAN7800LC-1 Schematic, PDF Board Design Files Download
EVB-LAN7800LC-1 BOM Board Design Files Download
EVB-LAN7800LC-1 Design Files Board Design Files Download
