Overview

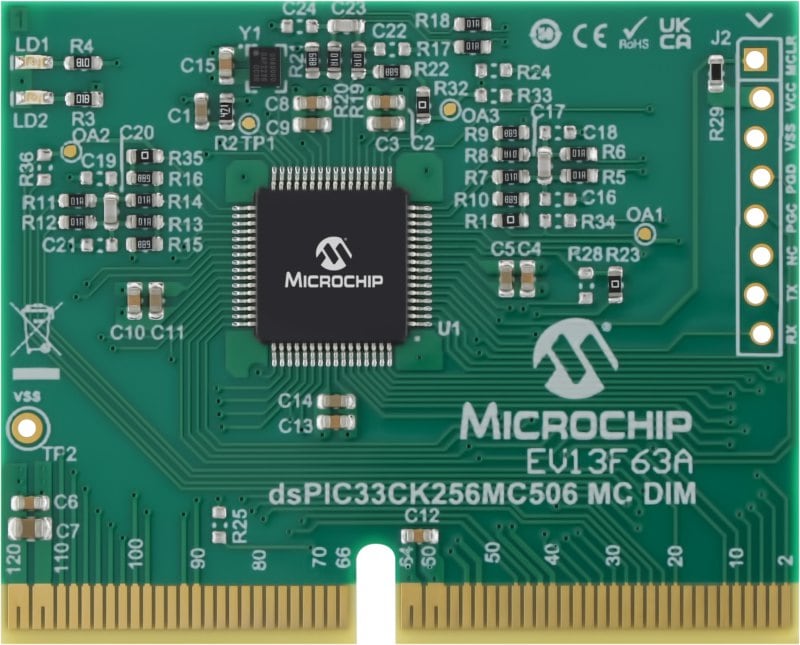

This Dual-Inline-Module (DIM) features a dsPIC33CK256MC506 64-pin TQFP Digital Signal Controller (DSC) device. It can be used to evaluate the entire family of dsPIC33CKxxxMC50x and dsPIC33CKxxxMC10x DSC devices for motor control applications. It supports using both the on-chip op amps, or Motor Control System (MCS) inverter board-based op amps for motor current feedback. This DIM is not compatible with the older MCLV-2 [DM330021-2] or MCHV [DM330023-2 or DM330023-3] PIM based inverter boards.
- 120 pin connector supports higher-pin count packages
- DIM has reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the dsPIC33CK256MC506 DSC family
- Supports both on-chip or board mounted op amps for motor current feedback
Cannot load image!
| Tool Details |
|---|
The Motor Control System (MCS) Development Tool Ecosystem enables you to rapidly develop motor control designs controlled by dsPIC® DSCs, SAM, PIC32MK, PIC32MC, and PIC32C MCUs. The MCS Development Tool Ecosystem consists of modular and interchangeable inverter boards, controller boards (Dual In-line Modules or DIMs), and Xplained Pro headers for user defined expansion. The MCHV-230VAC-1.5kW Motor Control High-Voltage Development Board is targeted to drive a three-phase Permanent Magnet Synchronous Motor (PMSM), Brushless DC (BLDC) Motor or an AC Induction Motor (ACIM) in both sensored and sensorless operation.
|
The Motor Control System (MCS) Development Tool Ecosystem enables rapid prototyping of motor control designs using the dsPIC® DSCs, SAM, PIC32MK, PIC32MC and PIC32C MCUs. The MCS Development Tools consist of modular and interchangeable inverter boards, controller boards (Dual In-Line Modules or DIMs) and expansion boards. DIMs and expansion boards must be purchased separately, see the links for the MC DIMs below. The MCLV-48V-300W Inverter Board is targeted to drive a low-voltage (12-48V) three-phase Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC) motor up to 25A RMS continuous per phase at 25°C.
|
