Overview
This Dual-Inline-Module (DIM) features a PIC32MK MCA 48-pin TQFP 32 Bit microcontroller. This is the smallest package in the PIC32MK family. Since this MCU has on-chip Op Amps, this DIM supports both on-chip and on-board current feedback using the Motor Control System (MCS) inverter board-based op amps for motor current feedback. This DIM is not compatible with the older MCLV-2 [DM330021-2] or MCHV [DM330023-2 or DM330023-3] PIM based inverter boards.
- 120 pin connector supports higher-pin count packages
- DIM has reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides support for the PIC32MK MCA Series MCU
- Supports both on-chip and board mounted op amps for motor current feedback

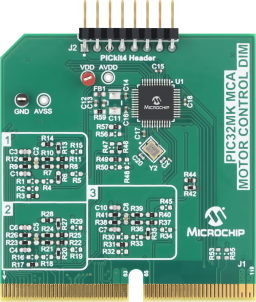

PIC32 MK MCA Motor Control Dual Inline Module (DIM)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC32 MK MCA Motor Control DIM Design Documentation | Board Design Files | Download | ||
| China RoHS Certificate_EV10R52A | Board Design Files | Download | ||
| UK Declaration of Conformity_EV10R52A | Board Design Files | Download | ||
| EU Declaration of Conformity_EV10R52A | Board Design Files | Download | ||
| EU-REACH Statement_EV10R52A | Board Design Files | Download |
