Overview

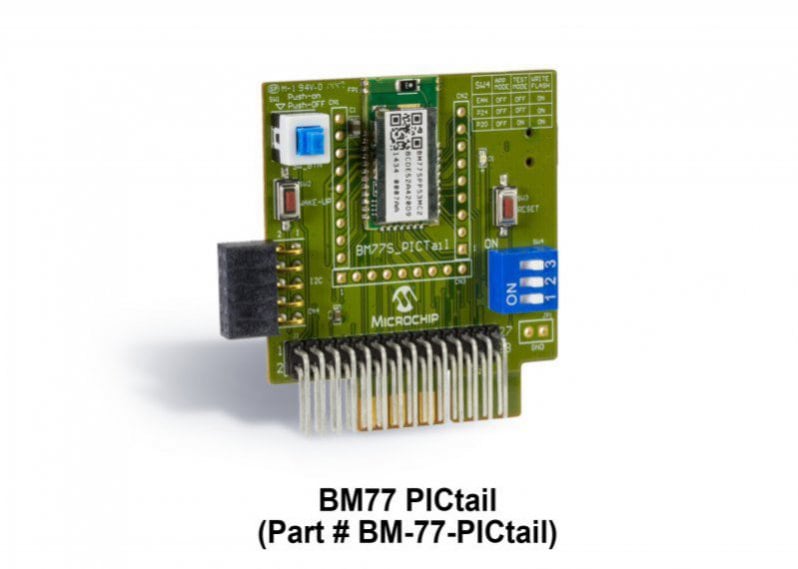

The BM77 PICtail™/PICtail Plus Board is a Bluetooth® Dual Mode development board that showcases the Microchip BM77 module, a fully-certified Bluetooth Version 4.0 Dual Mode module that supports both Bluetooth Classic and Bluetooth Low Energy. This flexible development board includes a convenient USB interface for plug-and-play capability in standalone mode and has a PICtail™/PICtail Plus interface for connecting to Microchip development boards. The board also includes on-board connection and data status LEDs.
To facilitate rapid development and prototyping, a BM77 driver is also provided for 8-bit, 16-bit and 32-bit microcontrollers. The BM77 PIC MCU driver provides a programming API for BM77 configuration and control functions. The driver is fully-compatible with MPLAB® X and the BM77 PICtail™/PICtail Plus interface.
To facilitate rapid development and prototyping, a BM77 driver is also provided for 8-bit, 16-bit and 32-bit microcontrollers. The BM77 PIC MCU driver provides a programming API for BM77 configuration and control functions. The driver is fully-compatible with MPLAB® X and the BM77 PICtail™/PICtail Plus interface.
- Enables rapid development with the BM77 Dual Mode Module
- PICtail™ and PICtail Plus interfaces for connection to Microchip Explorer 16 (DM240001) , PIC32 I/O Expansion board (DM320002) or PIC18 Explorer (DM183032) development boards
- Configuration Library for PIC18, PIC24F and PIC32 to enable easy integration
- Onboard connection and data status LEDs
- Onboard USB to UART bridge for easy development from PC
- BM77 Bluetooth Dual Mode PICtail™/PICtail Plus board
- Mini-USB cable
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| BM77 PICtail/PICtail Plus Board User's Guide | User Guide | Download | ||
| BM77 PICtail Configuration Library v1.0 | Software Libraries and Firmware | Download | ||
| BM77 PICtail Schematic | Board Design Files | Download | ||
| BM77 PICtail Demo | Software Libraries and Firmware | Download | ||
| BM77 Android App Demo | Software Libraries and Firmware | Download | ||
| PC ChatTool | Software Libraries and Firmware | Download | ||
| BM77 Product Brief | Data Sheets | Download | ||
| MCP2200/MCP2221 Windows Driver and Installer | Software Libraries and Firmware | Download |
