Overview

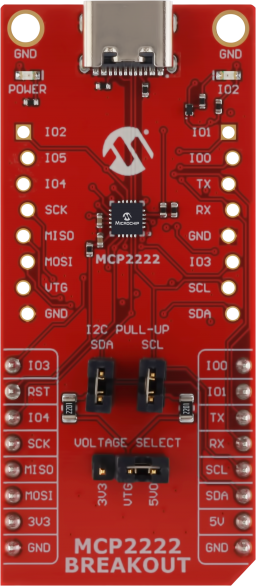

The MCP2222 Breakout Board is a low-cost development and evaluation platform for the MCP2222 USB-to-UART/I²C/SPI bridge device. The board allows users to interface a USB host with UART, I²C, and/or SPI devices through both the provided mikroBUS™ connector and additional IO connectors, facilitating tasks such as USB-to-UART/I2C/SMBus protocol conversion, and GPIO control.
- Supports both bus-powered and self-powered operation
- Supports selectable target voltage (VTG):
- 5V from the USB bus or mikroBUS™
- 3.3V using the on-board 3.3V regulator or from mikroBUS
- VTG can be connected directly to any 5V or 3.3V supply
- Automatically manages the 3.3V supply to the VUSB pin based on the selected target voltage (VTG):
- When VTG is set to 3V3, the on-board regulator supplies 3.3V to the VUSB pin
- When VTG is set to 5V0, the MCP2222 internal regulator supplies 3.3V to VUSB pin
- Provides mikroBUS™ connectors for use with compatible base boards
- Provides additional connectors for access to UART, I²C, SPI, and IO Pins
- Provides a USB Type-C® connector for connection to a USB host
- Includes two LEDs:
- Power LED
- User LED connected to IO2
- MCP2222 Breakout Board
- Two 100mil, 1x8 pin header strips
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP2222 Breakout Board User’s Guide | User Guides | Download | ||
| MCP2222 Breakout Board Schematics | Board Design Files | Download | ||
| MCP2222 Breakout Board Design Documentation | Board Design Files | Download | ||
| MCP2222 Breakout Board Altium Project | Board Design Files | Download | ||
| MCP2222 GUI Utility User’s Guide | User Guide | Download | ||
| GUI and CLI Host Utilities for Windows | Software | Download | ||
| GUI and CLI Host Utilities for macOS | Software | Download | ||
| GUI and CLI Host Utilities for Linux | Software | Download | ||
| Pymcp2222 (Python Package) | Supporting Collateral | Link |
