Overview

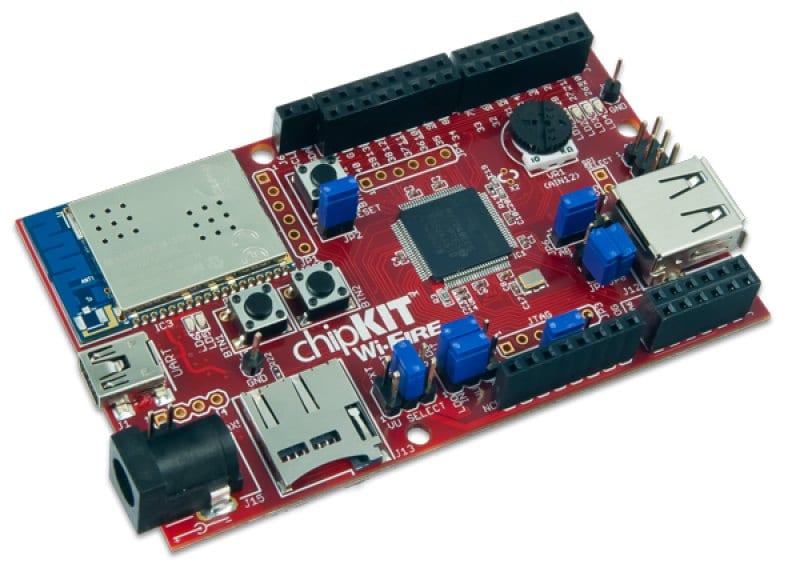

The chipKIT™ Wi-Fire board enables rapid prototyping with Microchip’s latest PIC32MZ architecture and Imagination Technologies' Flow Cloud Internet connectivity development software.
Digilent is a trusted third-party tool provider.
MPLAB Harmony Support available:
- One Board Support Package (BSP)
- Two USB demonstrations.
- Microchip PIC32MZ Processor: PIC32MZ2048EFG100
- Much faster than its WF32™ counterpart with 200 MHz operation speed, 2 MB of Flash, and 50 MHz SPI
- Microchip MRF24WG0MA Wi-Fi® module
- USB 2.0 Full-Speed / Hi-Speed OTG controller with A and micro-AB connectors
- Micro SD card connector
- High efficiency 3.3V switching power supply for low-power operation
- Supported by Imagination Technologies' Flow Cloud Software for your IoT projects
- Fully supported by MPIDE
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Board Support Packages (BSPs) | User Guide | Download |
