Overview

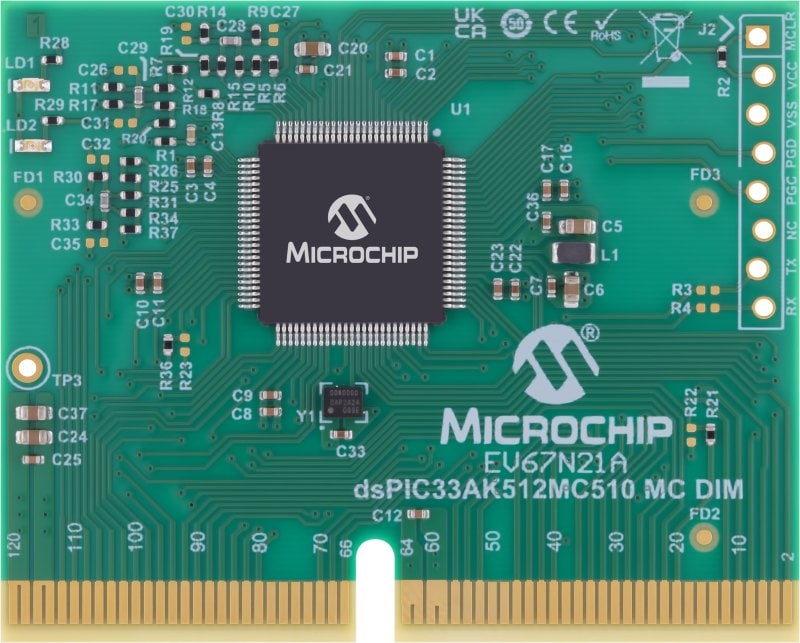

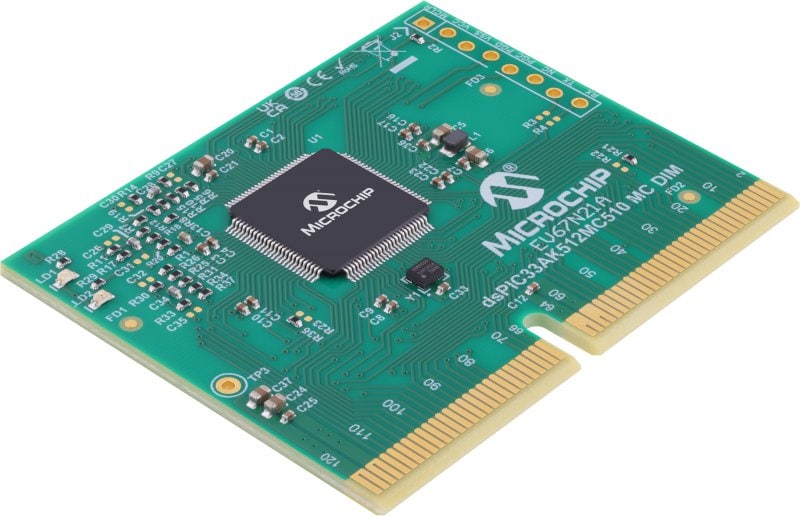

This Dual In-line Module (DIM) features a dsPIC33AK512MC510 100-pin TQFP Digital Signal Controller (DSC) device. It can be used to evaluate the entire dsPIC33AK512MC510 DSC family for motor control applications. It supports using both the three on-chip op amps, or MCS inverter board-based op amps for motor current feedback, such as the MCLV-48V-300W or MCHV-230VAC-1.5kW development boards. Note that this DIM is not compatible with the older MCLV-2 [DM330021-2] or MCHV [DM330023-2 or DM330023-3] PIM based inverter boards.
- 120-pin connectors support higher-pin count packages
- DIMs have a reduced socketing insertion force
- Keyed design ensures correct board orientation
- Provides complete support for the entire dsPIC33AK512MC510 DSC family and partial support for the dsPIC33AK512MPS512 DSC family
- Supports both on-chip or board mounted op amps for motor current feedback
- Compatible with all Motor Control System (MCS) inverter boards
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| dsPIC33AK512MC510 Motor Control Dual In-Line Module (DIM) Information Sheet | Information Sheets | Download | ||
| EV67N21A dsPIC33AK512MC510 Motor Control DIM Board Design Files | Other Board Design Files | Download | ||
| dsPIC33AK512MC510 Motor Control DIM Demo Projects | Code Examples | Link |
| Tool Details |
|---|
The Motor Control System (MCS) Development Tool Ecosystem enables you to rapidly develop motor control designs controlled by dsPIC® DSCs, SAM, PIC32MK, PIC32MC, and PIC32C MCUs. The MCS Development Tool Ecosystem consists of modular and interchangeable inverter boards, controller boards (Dual In-line Modules or DIMs), and Xplained Pro headers for user defined expansion. The MCHV-230VAC-1.5kW Motor Control High-Voltage Development Board is targeted to drive a three-phase Permanent Magnet Synchronous Motor (PMSM), Brushless DC (BLDC) Motor or an AC Induction Motor (ACIM) in both sensored and sensorless operation.
|
The Motor Control System (MCS) Development Tool Ecosystem enables rapid prototyping of motor control designs using the dsPIC® DSCs, SAM, PIC32MK, PIC32MC and PIC32C MCUs. The MCS Development Tools consist of modular and interchangeable inverter boards, controller boards (Dual In-Line Modules or DIMs) and expansion boards. DIMs and expansion boards must be purchased separately, see the links for the MC DIMs below. The MCLV-48V-300W Inverter Board is targeted to drive a low-voltage (12-48V) three-phase Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC) motor up to 25A RMS continuous per phase at 25°C.
|
