Part Number: EV14T68A

ATA5831-XPRO

View Purchasing Option
Contact Us

Overview

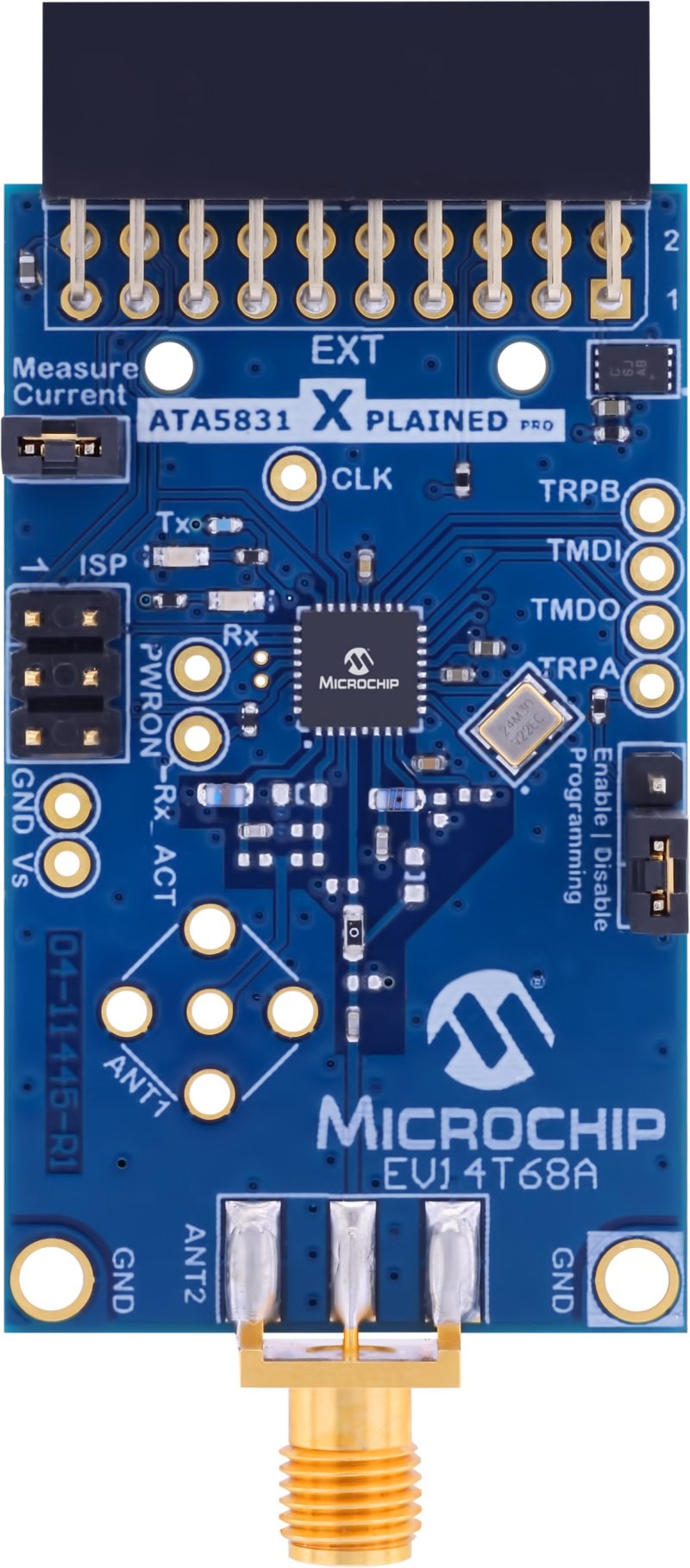

The ATA5831-XPRO (EV14T68A) radio frequency (RF) transceiver board includes the ATA5831 device, which incorporates a UHF transceiver radio, single pole, double throw (SPDT) switch and AVR® microcontroller core into a single IC device.

  • UHF transceiver supports 3 bands with a single crystal: 310-318 MHz, 418-477 MHz and 868-956 MHz (ASK, FSK and GFSK modulations)
  • AVR® microcontroller core with 20Kbyte of user flash, 1Kbyte SRAM and 24Kbyte RF library in firmware (ROM)
  • Integrated SPDT switch allows for one antenna to be used for both transmitting and receiving
  • 2 status LEDS
  • XPRO compatible header
  • One ultra high frequency (UHF) sub-miniature A (SMA) whip antenna

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
ATA5831-XPRO Design Files Board Design Files Download
ATA5831-XPRO Material Compliance Documentation Certifications Download
ATA5831-XPRO Regulatory Approval Documentation Certifications Download
