Overview

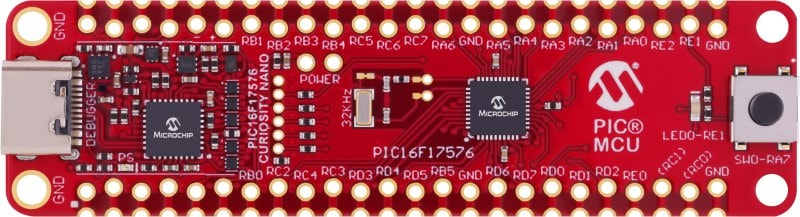

Take your next idea to market with a development board that you can keep in your pocket. With full program and debug capabilities, the PIC16F17576 Curiosity Nano Evaluation Kit offers complete support for your next design.
Use MPLAB X IDEs as a magnifying glass to look into your MCU and step through the debug. The free and easy-to-use graphical programming tools, MCC, allow you to intuitively program the target MCU.
- PIC16F17576 microcontroller
- 12-bit differential Analog-to-Digital Converter with Computation (ADCC) with a sample rate of up to 300 ksps
- Two 10-bit Digital-to-Analog Converters (DAC)
- Up to four Operational Amplifiers
- Low-Power Voltage Reference Module (VREFLP)
- Two Analog Comparators:
- Comparator Module (CMP)
- Low-Power Comparator Module (CMPLP)
- Analog Peripheral Manager (APM)
- One mechanical user switch
- One yellow user LED
- One 32.768 kHz Crystal
- On-board debugger
- Board identification in Microchip MPLAB® X IDE
- One green power and status LED
- Programming and debugging
- Virtual serial port (CDC)
- Two logic analyzer channels (DGI GPIO)
- USB powered
- Adjustable target voltage
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8 - 5.1 V output voltage (limited by USB input voltage)
- 500mA maximum output current
- PIC16F17576 Curiosity Nano Evaluation Kit

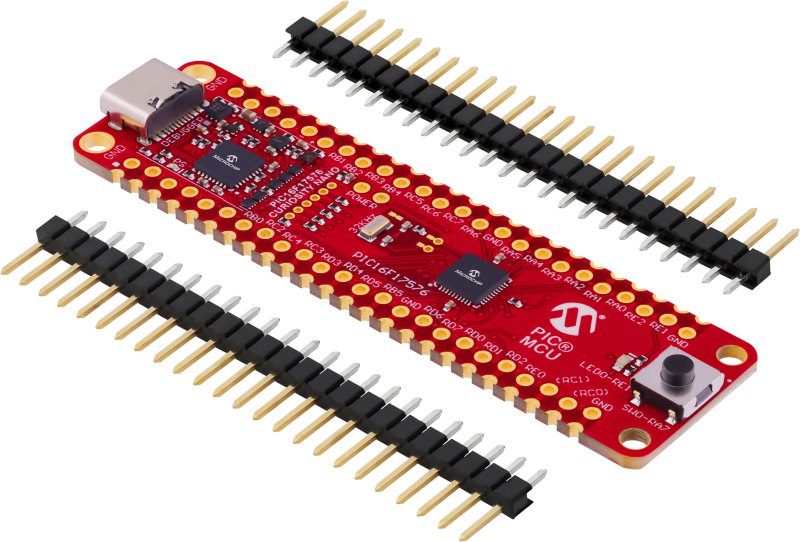

- Two 100mil, 1x24 pin header strips
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC16F17576 Curiosity Nano User Guide | User Guides | PDF | HTML | ||
| PIC16F17576 Curiosity Nano Altium Project | Board Design Files | Download | ||
| PIC16F17576 Curiosity Nano Design Documentation | Board Design Files | Download | ||
| PIC16F17576 Curiosity Nano Schematics | Board Design Files | Download | ||
| PIC16F17576 Curiosity Nano Pinout | Board Design Files | Download | ||
| Curiosity Nano Explorer Pinouts | Board Design Files | Download |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
MPLAB XC Compilers are optimized C compilers for Microchip microcontrollers, offering high-performance code generation and integration with MPLAB Tools for VS Code and MPLAB X IDE.
|
| Tool Details |
|---|
The Microchip Curiosity Nano Base for Click boards™ evaluation kit is a hardware extension platform to ease the connection between Curiosity Nano kits and extension boards like the mikroBUS™ Click modules and Xplained Pro extension boards.
|
The Curiosity Nano Explorer lives up to its name by providing extensive on-board features that allow users to explore and experiment with the microcontroller peripherals of their Curiosity Nano development board. It also serves as an ideal platform to become familiar with Microchip's software offerings, including MCC Melody.
A wide selection of input and output options:
Solid support for serial communication:
Microchip’s complementary technologies:
Finally, if anything is missing on the Explorer, its functionality can be expanded via mikroBUS™, Grove or Qwiic® sockets. |
