Microchip Technology Inc

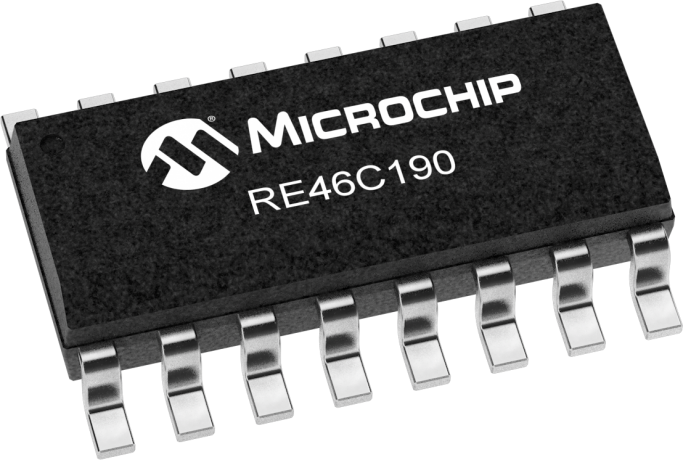

RE46C190

In Production

For product comparison, please consider: RE46C191
View Side By Side Comparison

The RE46C190 is not recommended for new designs.
Please use the RE46C191 for all new designs.

The RE46C190 is a low voltage, low current programmable photoelectric smoke detector IC. This circuit will provide all the required features for a photoelectric smoke detector with minimal external components. Programmable setup, calibration and feature selection are the key to reduced component count and reduced manufacturing costs. The boost regulator insures proper operation of the infrared diode and the piezo horn under low battery conditions. The RE46C190 was designed for use in smoke detectors that comply with Underwriters Laboratory Specification UL217 and UL268.



    Features

        • Two AA battery Operation
        • Low Quiescent Current Consumption
        • Internal IRED driver with Programmable IRED Current
        • Programmable Photo Amplifier
        • Programmable Smoke Sensitivity Levels
        • 9 Minute Timer for Reduced Sensitivity Operation
        • Chamber Test with Programmable Sensitivity Level
        • Internal Low Battery Test with Programmable Threshold
        • Interconnect up to 40 Detectors
        • Local Alarm Memory
        • Temporal or Continuous Horn Pattern
        • All internal Oscillator
        • Internal Power On Reset
        • Available 16L N SOIC
    Parameter Name
    Value
    Type
    Photoelectric
    Horn Driver Alarm Pattern
    NFPA Temporal or Continuous Tone
    Low Battery Detect
    True
    Reverse Battery Protection
    False
    Alarm Interconnect
    True
    Sensitivty Timer
    True
    Powerup Low Battery
    False
    Alternate Diagnostics Mode
    False
    Chamber Test
    True
    Internal POR
    True
    Operating Temperature Range (C)
    -10C to 60C
    Documentation
    Data Sheets
    10/12/2017
    927KB
      Device Documentation




    DeviceDoc
    05/27/2011
    500KB
      Product Selection Tools




    Product Line Card
    10/16/2017
    4415KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    RE46C190S16F
    16
    SOIC
    0C to +50C
    TUBE
    1.30
    1.09
    0.99
    0.95
    0.94
    RE46C190S16TF
    16
    SOIC
    0C to +50C
    T/R
    1.30
    1.09
    0.99
    0.95
    0.94

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • RE46C190 Demo Board ( ADM00344 )

      RE46C190

      The demo board is a complete stand-alone smoke detector application with a smoke chamber emulator. The demo board allows evaluation of all the functions of the RE46C190. Key test points of the device are available at the bottom edge of the demo board. It is designed for battery operation using a CR123A battery or can be operated using a power supply. The RE46C190 application circuit is on the...

    Similar Devices
    Product
    Horn Driver Alarm Pattern
    Price5K
    NFPA Temporal or Continuous Tone
    $0.54
    NFPA Temporal
    $0.54
    NFPA Temporal
    $0.57
    Continuous Tone
    $0.54
    Continuous Tone
    $0.57
    Continuous Tone
    $0.57
    NFPA Temporal
    $0.60
    NFPA Temporal
    $0.60
    Continuous Tone
    $0.60
    Continuous Tone
    $0.60
    NFPA Temporal
    $0.76
    NFPA Temporal or Continuous Tone
    $0.54
    NFPA Temporal or Continuous Tone
    $0.89
    NFPA Temporal or Continuous Tone
    $0.89
    NFPA Temporal
    $0.71
    Continuous Tone
    $0.71
    NFPA Temporal
    $0.71
    Continuous Tone
    $0.72
    NFPA Temporal or Continuous Tone
    $0.83
    NFPA Temporal or Continuous Tone
    $0.94
    NFPA Temporal or Continuous Tone
    $0.94
    NFPA Temporal or Continuous Tone
    $0.81
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    RE46C190S16F
    0.157400
    0.300000
    16
    SOIC
    .150in
    Matte Tin
    e3
    RE46C190S16TF
    0.157400
    0.307692
    16
    SOIC
    .150in
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
