Microchip Technology Inc

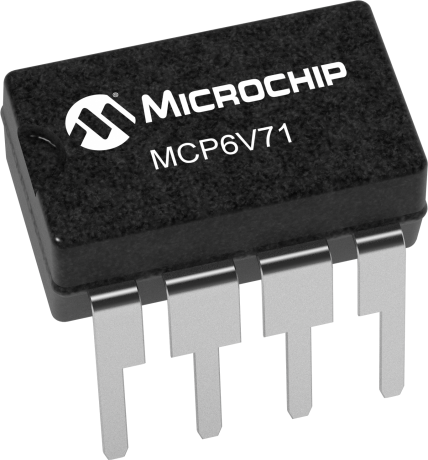

MCP6V71

In Production

The MCP6V7x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices provide a gain bandwidth product of 2 MHz, are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 2.0V with a maximum quiescent current of only 260 uA.



    Features

        • Zero Drift architecture
        • Maximum offset of only 8 uV
        • Maximum offset drift of 15 nV/C
        • No 1/f noise
        • GBWP of 2 MHz
        • Enhanced EMI Rejection
        • Small SC-70 and SOT-23 packaging
      Parameter Name
      Value
      Temp. Range (°C)
      -40°C to +125°C
      Vos Max (µV)
      8
      # per Package
      1
      Iq Typical (µA)
      170
      Iq Max (µA)
      260
      GBWP (kHz)
      2000
      Operating Voltage Range (V)
      2.0 to 5.5
      Device Description
      Linear High Precision Op Amps-Chopper Stabilized
      Input Voltage Noise Density (nV/rt(Hz))
      21
      PSRR Min (dB)
      115
      CMRR Min (dB)
      117
      Vos/Ta (uV/°C)
      0.015
      Ib (pA)
      1
      Aol (dB)
      126
      PM (deg)
      60
      Isc (mA)
      26
      Rail-to-Rail
      In/Out
      Unity Gain Stable
      Yes
      Slew Rate V/uS
      1
      Documentation
      Data Sheets
      09/30/2015
      1873KB
        Application Notes



      AppNote
      03/12/2008
      269KB
      AppNote
      09/02/2008
      588KB
      AppNote
      07/14/2014
      549KB
      AppNote
      04/03/2001
      223KB
      AppNote
      04/03/2001
      341KB
      AppNote
      03/28/2010
      262KB
      AppNote
      07/03/2012
      538KB
        Product Selection Tools




      Product Line Card
      10/16/2017
      4415KB
        Spice Model




      Spice Model
      03/09/2016
      3KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      MCP6V71T-E/OT
      5
      SOT-23
      -40C to +125C
      T/R
      1.08
      0.90
      0.82
      0.82
      0.81

      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      RoHS Information
      Part
      Number
      Device
      Weight
      Shipping
      Weight
      Lead
      Count
      Package
      Type
      Package
      Width
      Solder
      Composition
      JEDEC
      Indicator
      RoHS

      China
      EFUP
      MCP6V71T-E/OT
      0.016000
      0.049000
      5
      SOT-23
      -
      Matte Tin
      e3
      MCP6V71UT-E/OT
      0.016000
      0.049000
      5
      SOT-23
      -
      Matte Tin
      e3
      MCP6V71UT-E/LTY
      0.006300
      0.033333
      5
      SC70
      -
      NiPdAu
      e4
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
