Microchip Technology Inc

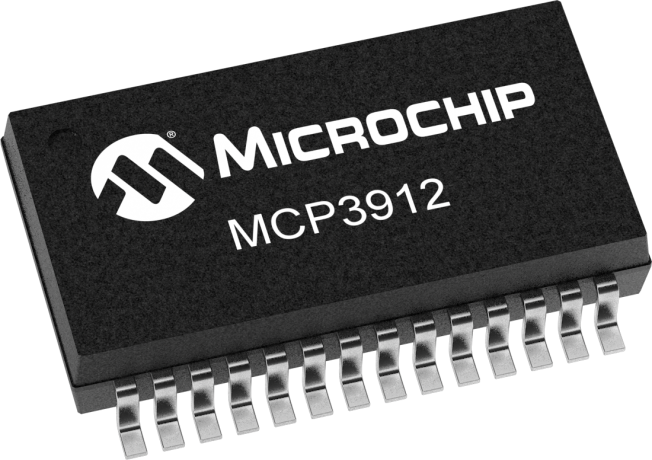

MCP3912

In Production

The MCP3912 is a 3V four channel Analog-Front-End (AFE) containing four synchronous sampling Delta-Sigma Analog-to-Digital Converters (ADC), four PGAs, phase delay compensation block, internal voltage reference, digital offset and gain error calibration registers and high-speed 20 MHz SPI compatible serial interface.  The MCP3912 AFE is capable of interfacing to a variety of voltage and current sensors including shunts, current transformers, Rogowski coils and Hall effect sensors



    Features

        • Four Synchronous Sampling 24-bit Delta-Sigma A/D Converters
        • 93.5 dB SINAD, -107 dBc THD, 112 dBFS SFDR
        • Enables 0.1% Typical Active Power Measurement Error over a 10,000:1 Dynamic Range
        • 2.7V - 3.6V AVDD, DVDD
        • Programmable Data Rate up to 125 ksps
          • 4 MHz Maximum Sampling Frequency
        • Advanced Security Features
          • 16-Bit CRC Checksum and Interrupt Alert
          • Register Map Lock
        • Oversampling Ratio up to 4096
        • Ultra Low Power Shutdown Mode with <10 µA
        • -122 dB Crosstalk between the Two Channels
        • Low Drift 1.2V Internal Voltage Reference: 9 ppm/°C
        • Differential Voltage Reference Input Pins
        • High Gain PGA on Each Channel (up to 32V/V)
        • Phase Delay Compensation with 1 µs Time Resolution
        • Separate Data Ready Pin for Easy Synchronization
        • Individual 24-bit Digital Offset and Gain Error Correction for Each Channel
        • High-Speed 20 MHz SPI Interface
        • Continuous Read/Write Modes for Minimum Communication
        • Available in 28-Lead QFN and SSOP Packages
        • AEC-Q100 Grade 1
    Parameter Name
    Value
    Measurement Error
    0.1%
    Dynamic Range
    10000:1
    Gain Selection
    1:32
    Voltage Reference Drift Typical (ppm/°C)
    9
    PSRR % typ
    -73
    ADC Resolution (bits)
    24
    # of Channels
    4
    Power Type
    Poly-Phase
    Device Type
    Analog-Front-End
    Interface
    SPI
    Operating Voltage (V)
    2.7 - 3.6
    Temperature Range (°C)
    -40 to 125
    Documentation
    Data Sheets
    11/09/2014
    5939KB
      Errata




    Errata
    07/17/2015
    67KB
      Product Document




    Product Document
    11/09/2014
    1167KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MCP3912A1-E/MQ
    28
    QFN
    -40C to +125C
    TUBE
    3.28
    2.73
    2.48
    2.40
    2.37
    MCP3912A1-E/SS
    28
    SSOP
    -40C to +125C
    TUBE
    3.23
    2.69
    2.45
    2.36
    2.34
    MCP3912A1T-E/MQ
    28
    QFN
    -40C to +125C
    T/R
    3.28
    2.73
    2.48
    2.40
    2.37

    MCP3912A1T-E/SS
    28
    SSOP
    -40C to +125C
    T/R
    3.23
    2.69
    2.45
    2.36
    2.34


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • MCP3912 Evaluation Board ( ADM00499 )

      MCP3912

      The MCP3912 ADC Evaluation Board system provides the opportunity to evaluate the performance of the MCP3912 four-channel Analog Front End (AFE). It also provides a development platform for 16-bit microcontroller-based applications, using the existing 100-pin PIC ® microcontroller Plug-in Module (PIM) systems that are compatible with Explorer 16 Evaluation Board (DM240001) and other high pin...

    Similar Devices
    Product
    No. of Channels
    ADC Resolution (bits)
    ADC SINAD (dB)
    Price5K
    3
    16
    78
    $0.67
    6
    16
    78
    $1.44
    7
    16
    78
    $2.28
    3
    24
    84
    $1.97
    4
    24
    84
    $2.49
    7
    24
    84

    2
    24
    91
    $1.44
    6
    24
    91
    $3.09
    2
    16
    n/a
    $1.34
    2
    16
    n/a
    $1.36
    2
    16
    n/a
    $1.47
    2
    16
    82
    $1.48
    2
    24
    93.5
    $1.46
    2
    24
    94.5
    $1.40
    4
    24
    93.5
    $2.34
    6
    24
    94.5
    $3.04
    8
    24
    94.5
    $3.76
    1
    24
    93.5
    $1.12
    3
    24
    93.5
    $1.84
    2
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    3
    24
    94.5
    $1.82
    2
    24
    94.5
    $1.82
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MCP3912A1-E/SS
    0.229200
    0.489362
    28
    SSOP
    .209in
    Matte Tin
    e3
    MCP3912A1T-E/SS
    0.229200
    0.333333
    28
    SSOP
    .209in
    Matte Tin
    e3
    MCP3912A1-E/MQ
    0.066500
    0.109589
    28
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP3912A1T-E/MQ
    0.066500
    0.166970
    28
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
