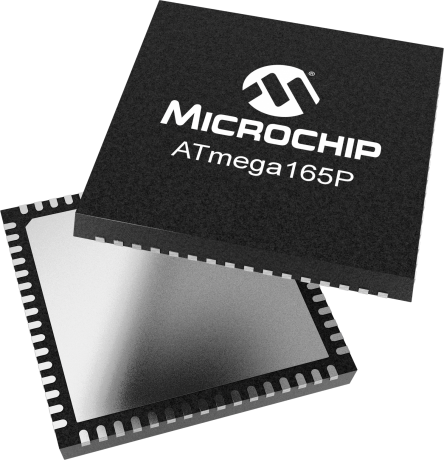

ATmega165P

Newer Device Available ATMEGA165PA

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The high-performance Microchip picoPower 8-bit AVR RISC-based microcontroller combines 16KB ISP flash with read-while-write capabilities, 512B EEPROM, 1KB SRAM, 53 general purpose I/O lines, 32 general purpose working registers, JTAG (IEEE 1149.1 compliant) interface for boundary-scan, on-chip debugging and programming, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, USI with start condition detector, an 8-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, SPI serial port, and five software selectable power saving modes. The device operates between 2.7-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.

For product comparison, please consider: ATMEGA165PA

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
16
CPU Speed (MIPS/DMIPS)
16
SRAM (B)
1
Data EEPROM/HEF (bytes)
512
Digital Communication Peripherals
1-UART, 2-SPI, 1-I2C
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 4PWM
Number of Comparators
1
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
64
Low Power
Yes
