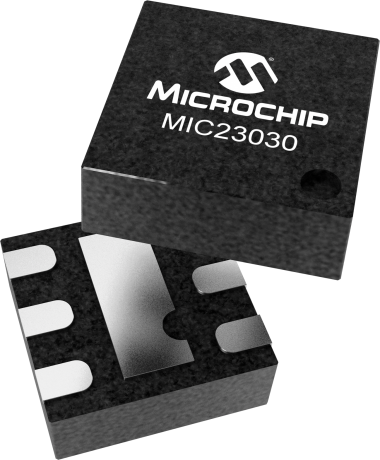

MIC23030

8MHz 400mA HyperLight Load® Synchronous Buck Regulator

Status: In Production

Features:

  • Input voltage: 2.7V to 5.5V
  • 400mA output current
  • Up to 91% efficiency and 83% at 1mA
  • 21 µA typical quiescent current
  • 8MHz PWM operation in continuous mode
  • Ultra fast transient response
  • Low voltage output ripple
  • Fully integrated MOSFET switches
  • 0.01 µA shutdown current
  • Thermal shutdown and current limit protection
  • Fixed and adjustable output voltage options available
  • -40 °C to +125 °C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC23030 is a high efficiency 8MHz 400mA synchronous buck regulator with HyperLight Load® mode. HyperLight Load® provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.

The MIC23030 is designed for use with a very small inductor, down to 0.47µH, and an output capacitor as small as 2.2µF that enables a sub-1mm height.

The MIC23030 has a very low quiescent current of 21µA and achieves as high as 83% efficiency at 1mA. At higher loads, the MIC23030 provides a constant switching frequency around 8MHz while achieving peak efficiencies up to 91%.

Additional Features
    • Input voltage: 2.7V to 5.5V
    • 400mA output current
    • Up to 91% efficiency and 83% at 1mA
    • 21 µA typical quiescent current
    • 8MHz PWM operation in continuous mode
    • Ultra fast transient response
    • Low voltage output ripple
    • Fully integrated MOSFET switches
    • 0.01 µA shutdown current
    • Thermal shutdown and current limit protection
    • Fixed and adjustable output voltage options available
    • -40 °C to +125 °C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
2.7
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.62
Output Current (mA) max
400
Quiescent Current (mA) typ
0.021
Switching Frequency (kHz)
8000
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Vfb (V)
0.62
Duty Cycle Max (%)
80
SHUTDOWN Current (µA) (Typ)
0.01
Light Load Efficiency Mode
Yes

Documents

Jump to:

Applications Source code

09/14/2017
362KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC23030-4YMT Evaluation Board
MIC23030-4YMT Evaluation Board ( MIC23030-4YMT-EV )

The MIC23030 is a 400mA 8MHz switching regulator featuring HyperLight Load™ mode. The MIC23030 is highly efficient throughout the entire output current range, drawing just 21μA of quiescent current in operation. The tiny 1.6 x 1.6mm MLF® package, in combination with the 8MHz switching frequency, enables a compact sub-1mm height solution with only three external components. The MIC23030 provides...

Learn More
Add To Cart
MIC23030-AYMT Evaluation Board
MIC23030-AYMT Evaluation Board ( MIC23030-AYMT-EV )

The MIC23030 is a 400mA 8MHz switching regulator featuring HyperLight Load™ mode. The MIC23030 is highly efficient throughout the entire output current range, drawing just 21μA of quiescent current in operation. The tiny 1.6 x 1.6mm MLF® package, in combination with the 8MHz switching frequency, enables a compact sub-1mm height solution with only three external components. The MIC23030 provides...

Learn More
Add To Cart
MIC23030-CYMT Evaluation Board
MIC23030-CYMT Evaluation Board ( MIC23030-CYMT-EV )

The MIC23030 is a 400mA 8MHz switching regulator featuring HyperLight Load™ mode. The MIC23030 is highly efficient throughout the entire output current range, drawing just 21μA of quiescent current in operation. The tiny 1.6 x 1.6mm MLF® package, in combination with the 8MHz switching frequency, enables a compact sub-1mm height solution with only three external components. The MIC23030 provides...

Learn More
Add To Cart
MIC23030-FYMT Evaluation Board
MIC23030-FYMT Evaluation Board ( MIC23030-FYMT-EV )

The MIC23030 is a 400mA 8MHz switching regulator featuring HyperLight Load™ mode. The MIC23030 is highly efficient throughout the entire output current range, drawing just 21μA of quiescent current in operation. The tiny 1.6 x 1.6mm MLF® package, in combination with the 8MHz switching frequency, enables a compact sub-1mm height solution with only three external components. The MIC23030 provides...

Learn More
Add To Cart
MIC23030-GYMT Evaluation Board
MIC23030-GYMT Evaluation Board ( MIC23030-GYMT-EV )
(Not Recommended for new design)

The MIC23030 is a 400mA 8MHz switching regulator featuring HyperLight Load™ mode. The MIC23030 is highly efficient throughout the entire output current range, drawing just 21μA of quiescent current in operation. The tiny 1.6 x 1.6mm MLF® package, in combination with the 8MHz switching frequency, enables a compact sub-1mm height solution with only three external components. The MIC23030 provides...

Learn More
Add To Cart
