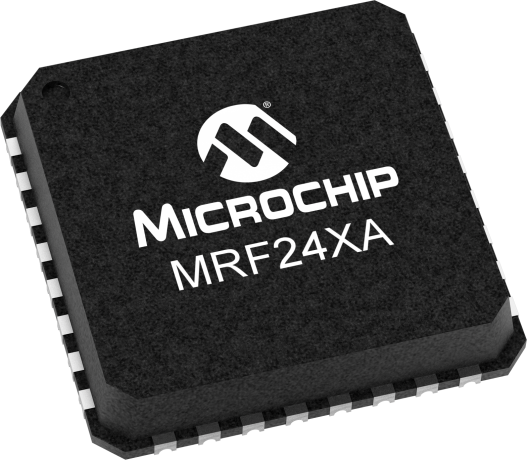

The MRF24XA is an IEEE 802.15.4™ Standard compliant 2.4 GHz RF transceiver with feature extensions.  The MRF24XA integrates the PHY and MAC functionality in a single chip solution.  This flexible solution implements a low-cost, low-power, high data rate (125 kbps to 2 Mbps) Wireless Personal Area Network (WPAN) device.

• IEEE 802.15.4™ 2003 and IEEE 802.15.4 2006 Standard Compliant RF transceiver
• Multiple air data rates: 250 kbps (IEEE 802.15.4), 125, 500, 1000, 2000 kbps, co-existence with standard networks
• Configurable TX output power: -17.5 to 0 dBm
• Frame header duration scales with the selected data rate
• On-the-fly, per-frame air-data-rate detection(link-by-link independent air data rates)
• Inferred destination addressing (to further save on framing overheads; optional)
• Supports ZigBee RF4CE protocol (microchip.com/RF4CE) and MiWi Protocol (microchip.com/MiWi)
