AR1021

Not Recommended for new designs

The Microchip mTouch™ AR1000 Series Resistive Touch Screen Controller is a complete, easy to integrate, cost-effective and universal touch screen controller chip solution. The AR1000 Series has sophisticated proprietary touch screen decoding algorithms to fully process all touch data and save the host from this overhead. More than the usual “preprocessing” features of other low cost devices, the AR1000 delivers reliable, validated and calibrated touch coordinates. Using its onboard EEPROM, the AR1000 can store and independently apply the calibration to the touch coordinates before sending them to the host. This unique combination makes the AR1000 the most resource efficient touch screen controller for embedded designs.

The AR1021 touch screen controller supports I2C™Compatible and SPI communication. Please reference the AR1011 touch screen controller for UART communication.



    Features

        • Supports any manufacturer's 4-, 5-, or 8-wire analog resistive touch screen
        • I2C or SPI communication
        • 1024x1024 resolution
        • EEPROM calibration retention
        • Supports any size analog resistive touch screen, 1.5" - 24"
    Parameter Name
    Value
    Product Type
    Analog Resistive Controller
    Measurement Principle
    Resistance
    Report Rate (pps)
    140
    Number of Touches
    1
    Power
    3.3Vdc ±5%,5.5Vdc ±5%
    Power Modes
    2
    Position Resolution
    1024x1024
    Interface
    I2C, SPI
    Features
    4, 5, & 8 wire support
    Voltage Range
    2.5V - 5.5V
    Documentation
    Data Sheets
    07/08/2016
    2147KB
      Technical Briefs




    Tech Briefs
    03/24/2010
    315KB
      Software




    Software
    07/26/2012
    7289KB
    Software
    06/22/2012
    623KB
    Software
    08/02/2010
    237KB
      User Guides



    User Guides
    03/23/2015
    643KB
    User Guides
    07/27/2012
    632KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AR1021-I/ML
    20
    QFN
    -40C to +85C
    TUBE
    1.92
    1.76
    1.59
    1.47
    1.39
    AR1021-I/SO
    20
    SOIC
    -40C to +85C
    TUBE
    1.82
    1.67
    1.51
    1.39
    1.32
    AR1021-I/SS
    20
    SSOP
    -40C to +85C
    TUBE
    1.67
    1.53
    1.38
    1.27
    1.21
    AR1021T-I/ML
    20
    QFN
    -40C to +85C
    T/R
    2.02
    1.85
    1.68
    1.54
    1.47

    AR1021T-I/SO
    20
    SOIC
    -40C to +85C
    T/R
    1.92
    1.76
    1.59
    1.47
    1.39

    AR1021T-I/SS
    20
    SSOP
    -40C to +85C
    T/R
    1.77
    1.62
    1.47
    1.35
    1.28


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    Similar Devices
    Product
    Product Type
    Price5K
    Notes
    Analog Resistive Controller
    $1.21
    UART
    Analog Resistive Controller
    $1.21
    I2C, SPI
    Analog Resistive Controller
    $1.53
    RS232, USB
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP

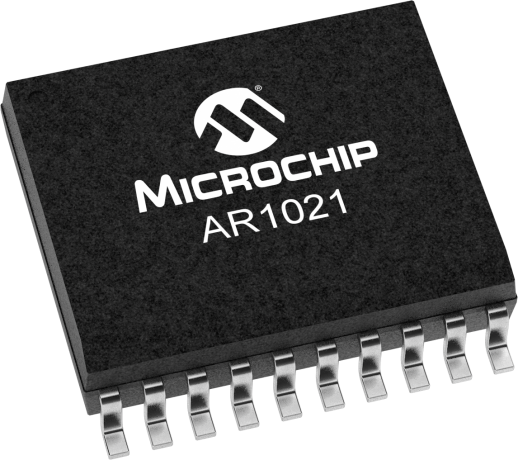

    AR1021T-I/SO
    0.542000
    0.311875
    20
    SOIC
    .300in
    Matte Tin
    e3
    AR1021-I/SO
    0.542000
    0.973684
    20
    SOIC
    .300in
    Matte Tin
    e3

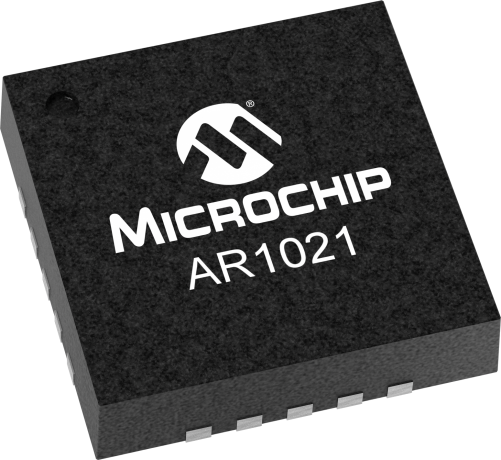

    AR1021T-I/ML
