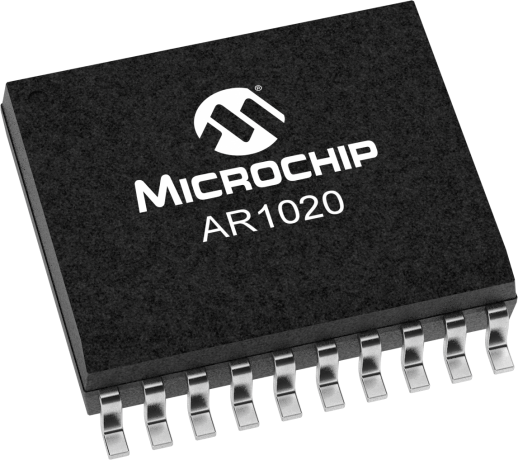

AR1020

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The AR1020 touch screen controller supports I2C™Compatible and SPI communication. Please reference the AR1010 touch screen controller for UART communication.

Please consider this device AR1021

Parametrics
Name
Value
Product Type
Analog Resistive Controller
Measurement Principle
Resistance
Report Rate (pps)
140
Number of Touches
1
Power
3.3Vdc ±5%,5.5Vdc ±5%
Power Modes
2
Position Resolution
1024x1024
Interface
I2C, SPI
Features
4, 5, & 8 wire support
Voltage Range
2.50V - 5.50V

Documents

Jump to:

Supporting Collateral

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
mTouch AR1000 Development Kit
mTouch AR1000 Development Kit ( DV102011 )

The mTouch AR1000 Development Kit provides everything designers need to get started using AR1000 resistive controllers for a turn-key, cost effective solution. The kit includes the AR1000 development board, a 7” four-wire resistive touch screen, a PICkit™ Serial Analyzer...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AR1020-I/ML
0.043100
0.076923
20
QFN
4x4x0.9mm
Matte Tin
e3
AR1020T-I/ML
0.043100
0.212121
20
QFN
4x4x0.9mm
Matte Tin
e3
AR1020-I/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
AR1020T-I/SS
0.164200
0.416250
20
SSOP
.209in
Matte Tin
e3
AR1020T-I/SO
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
AR1020-I/SO
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
