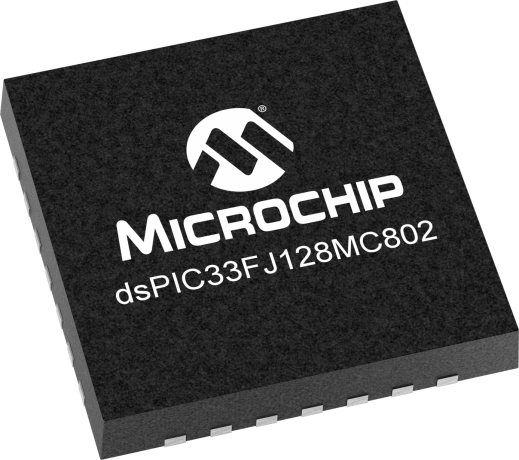

dsPIC33FJ128MC802

Status: In Production

Features:

  • Industrial temperature range (-40°C to +85°C)
  • Extended temperature range (-40°C to +125°C)
  • High temperature range (-40°C to +150°C)
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 16-bit wide data path
  • 24-bit wide instructions
  • Linear program memory addressing up to 4M instruction words
  • Linear data memory addressing up to 64 Kbytes
  • 83 base instructions: mostly 1 word/1 cycle
  • Two 40-bit accumulators with rounding and saturation options
  • Indirect
  • Modulo
  • Bit-Reversed
  • Software stack
  • 16 x 16 fractional/integer multiply operations
  • 32/16 and 16/16 divide operations
  • Accumulator write back for DSP operations
  • Dual data fetch
  • Up to ±16-bit shifts for up to 40-bit data
  • Flash program memory
  • Data SRAM
  • Boot, Secure, and General Security for program Flash
  • 8-channel hardware DMA
  • Allows data transfer between RAM and a peripheral while CPU is executing code (no cycle stealing)
  • Most peripherals support DMA
  • Can pair up to make two 32-bit timers
  • One timer runs as a Real-Time Clock with an external 32.768 kHz oscillator
  • Programmable prescaler
  • Capture on up, down or both edges
  • 16-bit capture input functions
  • 4-deep FIFO on each capture
  • Single or Dual 16-bit Compare mode
  • 16-bit Glitchless PWM mode
  • Provides clock, calendar, and alarm functions
  • 5-cycle latency
  • 118 interrupt vectors
  • Up to 53 available interrupt sources
  • Up to three external interrupts
  • Seven programmable priority levels
  • Five processor exceptions
  • Peripheral pin Select functionality
  • Up to 35 programmable digital I/O pins
  • Wake-up/Interrupt-on-Change for up to 21 pins
  • Output pins can drive from 3
  • 0V to 3.6V
  • Up to 5V output with open drain configuration
  • All digital input pins are 5V tolerant
  • 4 mA sink on all I/O pins
  • External, crystal, resonator, internal RC
  • Fully integrated Phase-Locked Loop (PLL)
  • Extremely low jitter PLL
  • Power-up Timer
  • Oscillator Start-up Timer/Stabilizer
  • Watchdog Timer with its own RC oscillator
  • Fail-Safe Clock Monitor
  • Reset by multiple sources
  • On-chip 2.5V voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep, and Doze modes with fast wake-up
  • Two and four simultaneous samples (10-bit ADC)
  • Up to nine input channels with auto-scanning
  • Conversion start can be manual or synchronized with one of four trigger sources
  • Conversion possible in Sleep mode
  • ±2 LSb max integral nonlinearity
  • ±1 LSb max differential nonlinearity
  • Two analog comparators with programmable input/output configuration
  • Low-power, high-speed Flash technology
  • Fully static design
  • 3.3V (±10%) operating voltage
  • Industrial and Extended temperature
  • Low power consumption
  • Three duty cycle generators
  • Independent or Complementary mode
  • Programmable dead time and output polarity
  • Edge-aligned or center-aligned
  • Manual output override control
  • One Fault input
  • Trigger for ADC conversions
  • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
  • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
  • One duty cycle generator
  • Independent or Complementary mode
  • Programmable dead time and output polarity
  • Edge-aligned or center-aligned
  • Manual output override control
  • One Fault input
  • Trigger for ADC conversions
  • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
  • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
  • 2-Quadrature Encoder Interface module:
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Additional Features

    Operating Range:

    • Up to 40 MIPS operation (at 3.0-3.6V):
      • Industrial temperature range (-40°C to +85°C)
      • Extended temperature range (-40°C to +125°C)
      • High temperature range (-40°C to +150°C)

    High-Performance DSC CPU:

    • Modified Harvard architecture
    • C compiler optimized instruction set
    • 16-bit wide data path
    • 24-bit wide instructions
    • Linear program memory addressing up to 4M instruction words
    • Linear data memory addressing up to 64 Kbytes
    • 83 base instructions: mostly 1 word/1 cycle
    • Two 40-bit accumulators with rounding and saturation options
    • Flexible and powerful addressing modes:
      • Indirect
      • Modulo
      • Bit-Reversed
    • Software stack
    • 16 x 16 fractional/integer multiply operations
    • 32/16 and 16/16 divide operations
    • Single-cycle multiply and accumulate:
      • Accumulator write back for DSP operations
      • Dual data fetch
    • Up to ±16-bit shifts for up to 40-bit data

    On-Chip Flash and SRAM:

    • Flash program memory
    • Data SRAM
    • Boot, Secure, and General Security for program Flash

    Direct Memory Access (DMA):

    • 8-channel hardware DMA
    • Up to 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA:
      • Allows data transfer between RAM and a peripheral while CPU is executing code (no cycle stealing)
    • Most peripherals support DMA

    Timers/Capture/Compare/PWM:

    • Timer/Counters, up to five 16-bit timers:
      • Can pair up to make two 32-bit timers
      • One timer runs as a Real-Time Clock with an external 32.768 kHz oscillator
      • Programmable prescaler
    • Input Capture (up to four channels):
      • Capture on up, down or both edges
      • 16-bit capture input functions
      • 4-deep FIFO on each capture
    • Output Compare (up to four channels):
      • Single or Dual 16-bit Compare mode
      • 16-bit Glitchless PWM mode
    • Hardware Real-Time Clock/Calendar (RTCC):
      • Provides clock, calendar, and alarm functions

      Interrupt Controller:

      • 5-cycle latency
      • 118 interrupt vectors
      • Up to 53 available interrupt sources
      • Up to three external interrupts
      • Seven programmable priority levels
      • Five processor exceptions

      Digital I/O:

      • Peripheral pin Select functionality
      • Up to 35 programmable digital I/O pins
      • Wake-up/Interrupt-on-Change for up to 21 pins
      • Output pins can drive from 3
      • 0V to 3.6V
      • Up to 5V output with open drain configuration
      • All digital input pins are 5V tolerant
      • 4 mA sink on all I/O pins

      System Management:

      • Flexible clock options:
        • External, crystal, resonator, internal RC
        • Fully integrated Phase-Locked Loop (PLL)
        • Extremely low jitter PLL
      • Power-up Timer
      • Oscillator Start-up Timer/Stabilizer
      • Watchdog Timer with its own RC oscillator
      • Fail-Safe Clock Monitor
      • Reset by multiple sources

      Power Management:

      • On-chip 2.5V voltage regulator
      • Switch between clock sources in real time
      • Idle, Sleep, and Doze modes with fast wake-up

      Analog-to-Digital Converters (ADCs):

      • 10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion:
        • Two and four simultaneous samples (10-bit ADC)
        • Up to nine input channels with auto-scanning
        • Conversion start can be manual or synchronized with one of four trigger sources
        • Conversion possible in Sleep mode
        • ±2 LSb max integral nonlinearity
        • ±1 LSb max differential nonlinearity

      Comparator Module:

      • Two analog comparators with programmable input/output configuration

      CMOS Flash Technology:

      • Low-power, high-speed Flash technology
      • Fully static design
      • 3.3V (±10%) operating voltage
      • Industrial and Extended temperature
      • Low power consumption

      Motor Control Peripherals:

      • 6-channel 16-bit Motor Control PWM:
        • Three duty cycle generators
        • Independent or Complementary mode
        • Programmable dead time and output polarity
        • Edge-aligned or center-aligned
        • Manual output override control
        • One Fault input
        • Trigger for ADC conversions
        • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
        • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
      • 2-channel 16-bit Motor Control PWM:
        • One duty cycle generator
        • Independent or Complementary mode
        • Programmable dead time and output polarity
        • Edge-aligned or center-aligned
        • Manual output override control
        • One Fault input
        • Trigger for ADC conversions
        • PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
        • PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
      • 2-Quadrature Encoder Interface module:
    Parametrics
    Name
    Value
    Architecture
    16-bit
    Max CPU Speed (MHz)
    40
    CPU Speed (MIPS/DMIPS)
    40
    Program Memory Size (KB)
    128
    SRAM (KB)
    16
    Direct Memory Access Channels
    8
    Temperature Range (C)
    -40 to 150
    Operating Voltage Range (V)
    3 to 3.6
    Pin Count
    28
    Comparators
    2
    Analog Peripherals
    1-A/D 6x12-bit @ 1100(ksps) 1-D/A 0x4-bit
    UART
    2
    SPI
    2
    I2C
    1
    Timers
    5 x 16-bit 2 x 32-bit
    Motor Control PWM Outputs
    8
    Input Capture
    4
    Max PWM outputs (including complementary)
    12
    Number of PWM Time Bases
    2
    Output Compare Channels
    4
    Number of CAN Modules
    1
    Type of CAN Module
    CAN
    Class B Hardware
    Yes
    Quadrature Encoder Interface
    2
    Peripheral Pin Select / Pin Muxing
    Yes
