Status: Not Recommended for new designs

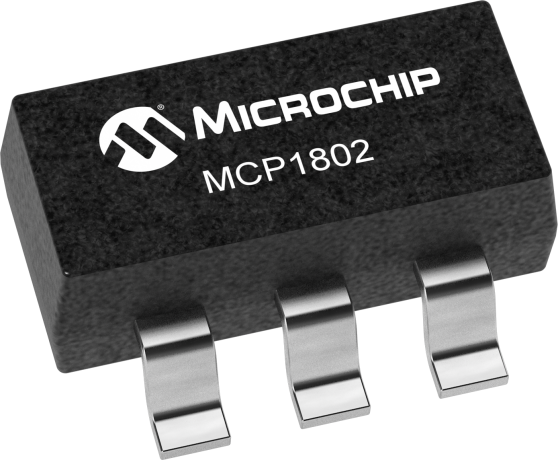

The MCP1802 is a 300 mA, high PSRR, ceramic output capacitor stable Low Dropout (LDO) voltage regulator with shutdown. MCP1802 provides a low noise, highly stable output due to its excellent transient response while consuming only 25 µA of quiescent current. MCP1802's overcurrent limit with current foldback provides short-circuit protection.
Please consider this device MCP1755
The SOT23-5 Voltage Regulator Evaluation Board is designed to provide functional evaluation of Microchip Voltage Regulators that utilize the SOT23-5 package. The SOT23-5 Voltage Regulator Evaluation Board does not come with a voltage regulator soldered onto the board. This allows the user to attach the voltage regulator of their choosing to the board and perform quiescent current, ground current,...
For pricing and availability, contact Microchip Local Sales.
