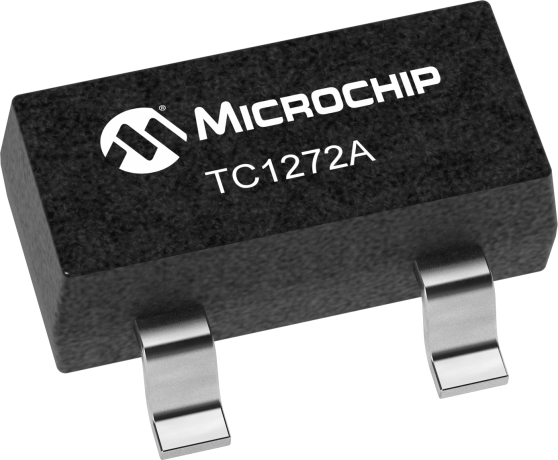

product primary image

TC1272A

3-Pin Reset Monitor

Status: In Production

Features:

  • Precision VDD Monitor
  • 140 msec Minimum RESET, Output Duration
  • Output Valid to VDD = 1.2V
  • VDD Transient Immunity
  • Small 3-Pin SOT-23B Package
  • No External Components
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC1272A are cost-effective system supervisor circuits designed to monitor VDD in digital systems and provide a reset signal to the host processor, when necessary. No external components are required. The reset output is driven active within 65 µsec (typ.) of VDD falling through the reset voltage threshold. RESET is maintained active for a minimum of 140 msec after VDD rises above the reset threshold. The TC1272A has a complimentary output. The output of the TC1272A is valid down to VDD = 1.2V. The device is available in a 3-Pin SOT-23B package.

Additional Features
    • Precision VDD Monitor
    • 140 msec Minimum RESET, Output Duration
    • Output Valid to VDD = 1.2V
    • VDD Transient Immunity
    • Small 3-Pin SOT-23B Package
    • No External Components
Parametrics
Name
Value
Product Type
Supervisor
Operating Temp. Range (°C)
-40 to 125
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
4.50, 4.25, 3.89, 3.00, 2.85, 2.55, 2.25
Reset Type
Active Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
140
Typical Supply Current (µA)
12

Documents

Jump to:

Data Sheet

Brochures

Product Line Card

Product Line Documents

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Voltage Supervisor Evaluation Board
Voltage Supervisor Evaluation Board ( VSUPEV )

The Voltage Supervisor SOT23 Evaluation Board allows the system designer to quickly evaluate the operation of Microchip’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices (such as LDOs and Voltage References) may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC1272AJVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272ALVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272AMVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272ARVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272ASVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272ATVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
TC1272AZVNBTR
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
