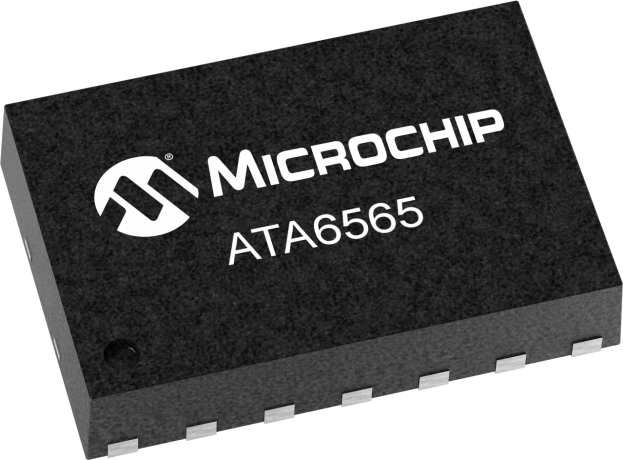

ATA6565

High-speed Dual CAN FD Transceiver

Status: In Production

Features:

  • Fully ISO 11898-2, ISO 11898-5, ISO 11898-2: 2016 and SAE J2962-2 compliant
  • CAN FD ready
  • Communication speed up to 5Mbit/s
  • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
  • Differential receiver with wide common mode range
  • Remote wake-up capability via CAN bus - Wake-up on Pattern (WUP), as specified in ISO 11898-2: 2016, 3.8μs activity filter time
  • Functional behavior predictable under all supply conditions
  • Transceiver disengages from the bus when not powered up
  • RXD recessive clamping detection
  • High electrostatic discharge (ESD) handling capability on the bus pins
  • Bus pins protected against transients in automotive environments
  • Transmit data (TXD) dominant time-out function
  • Undervoltage detection on VCC pin
  • Bus pins short-circuit and overtemperature protected
  • Fulfills the OEM “Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications, Rev. 1.3"
  • Automotive Grade 0 qualified according to AEC-Q100
  • Packages: SO14, DFN14 with wettable flanks (Moisture Sensitivity Level 1)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The Microchip ATA6565 is a fully integrated dual high-speed CAN transceiver with two completely independent and separated high-speed CAN transceivers integrated in one package (only the GND pins GND1 and GND2 are internally connected). Each of the two identical transceivers provides an interface between a controller area network (CAN) protocol controller and the physical two-wire CAN bus. The device is designed for high-speed (up to 5Mbit/s) CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance, as well as features such as:

- Ideal passive behavior to the CAN bus when the supply voltage is off

- Very low current consumption in Standby mode with bus wake-up capability

Two operating modes together with the dedicated fail-safe features make the Microchip ATA6565 an excellent choice for all types of high-speed CAN networks including more than one high-speed CAN interface which require a Low-power mode with wake-up capability via the CAN bus, this means especially for body control units and gateways.

The ATA6565 is automotive Grade 0 qualified for an ambient temperature range from -40° to 150°C.

To purchase the ATA6565 or obtain additional information, please contact any Microchip sales representative or authorized worldwide distributor.

Additional Features
    • Fully ISO 11898-2, ISO 11898-5, ISO 11898-2: 2016 and SAE J2962-2 compliant
    • CAN FD ready
    • Communication speed up to 5Mbit/s
    • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
    • Differential receiver with wide common mode range
    • Remote wake-up capability via CAN bus - Wake-up on Pattern (WUP), as specified in ISO 11898-2: 2016, 3.8μs activity filter time
    • Functional behavior predictable under all supply conditions
    • Transceiver disengages from the bus when not powered up
    • RXD recessive clamping detection
    • High electrostatic discharge (ESD) handling capability on the bus pins
    • Bus pins protected against transients in automotive environments
    • Transmit data (TXD) dominant time-out function
    • Undervoltage detection on VCC pin
    • Bus pins short-circuit and overtemperature protected
    • Fulfills the OEM “Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications, Rev. 1.3"
    • Automotive Grade 0 qualified according to AEC-Q100
    • Packages: SO14, DFN14 with wettable flanks (Moisture Sensitivity Level 1)
View Block Diagrams

Parametrics
Name
Value
Version Supported
Yes
Temp. Range (°C)
-40 to +150
Operating Voltage Range (V)
4.5 to 5.5

Block Diagram

(Click the image to view interactive diagram)
No records are available.

Documents

Jump to:

Brochures

08/01/2015
3116KB
11/01/2013
5255KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA6565-GCQW0
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
ATA6565-GCQW1
0.035800
0.158333
14
VDFN
3x4.5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
