Device Overview

Summary

High-performance secure memory that provides 1Kbit of user memory with advanced security and cryptographic features built-in. The user memory is divided into four 32-byte zones, each of which may be either individually set with different security access rights or effectively combined together to provide space for one to four data files. The device features an enhanced command set that allows direct communication with the microcontroller hardware two-wire interface. This enables faster firmware development with reduced code space requirements.

Parametrics
Name
Value
Key Size
64
Max# Operating Freq# (MHz)
4
Density Kb
1
Operating Voltage (Vcc)
2.7 - 3.6
Algorithm Type
Proprietary
Zones
4
Interface Type
2-WIRE; ISO7816 T=0

Documents

Jump to:

Application Notes

Device Documentation


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

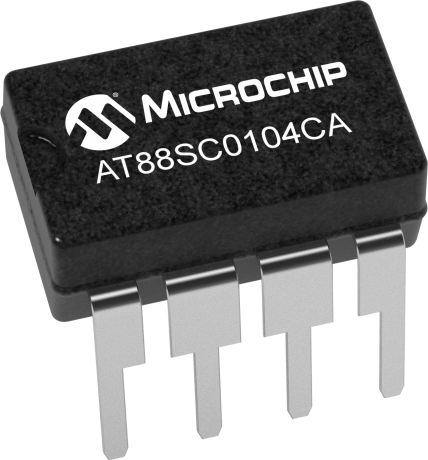

AT88SC0104CA-PU
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
Rohs icon
efup china icon
AT88SC0104CA-SH
0.075000
0.163265
8
SOIC
3.90mm(.150in)
NiPdAu
e4
Rohs icon
efup china icon
AT88SC0104CA-SH-T
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
Rohs icon
efup china icon
AT88SC0104CA-MPTG
2250.000000
0
CONTACT
12.6x11.4x0.58mm
NiAu
e4
Rohs icon
efup china icon
AT88SC0104CA-MJTG
0.104400
2250.000000
0
CONTACT
12.6x11.4x0.58mm
NiAu
e4
Rohs icon
efup china icon
AT88SC0104CA-MJ
0.104400
2250.000000
0
CONTACT
12.6x11.4x0.58mm
NiAu
e4
Rohs icon
efup china icon
AT88SC0104CA-MP
2250.000000
0
CONTACT
12.6x11.4x0.58mm
NiAu
e4
Rohs icon
efup china icon

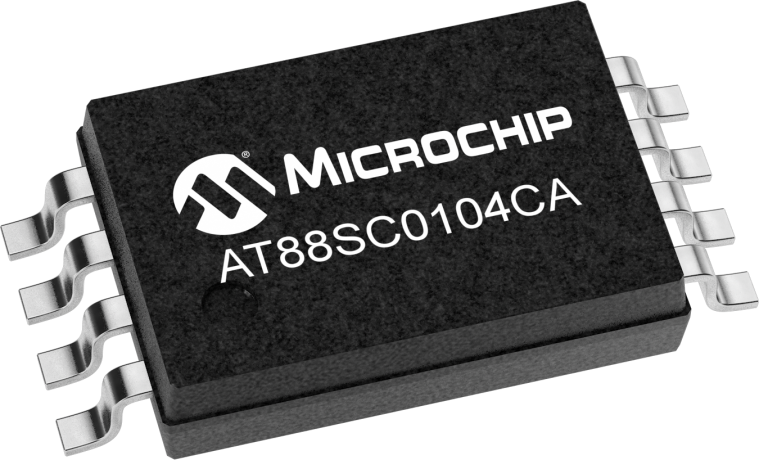

AT88SC0104CA-TH-T
0.035800
0.199200
8
TSSOP
4.4mm
NiPdAu
e4
Rohs icon
efup china icon
AT88SC0104CA-TH
0.035800
0.190000
8
TSSOP
4.4mm
NiPdAu
e4
Rohs icon
efup china icon
AT88SC0104CA-Y6H-T
0.009600
0.538600
8
UDFN
2x3x0.6mm
NiPdAu
e4
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
