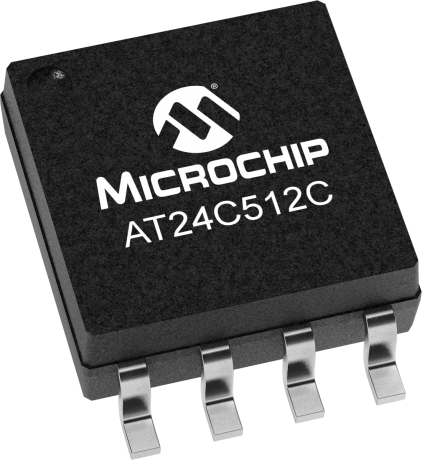

AT24C512C

512Kb I2C compatible 2-wire Serial EEPROM

Status: In Production

Features:

  • 64K x 8 (512 Kbit)
  • 400 kHz and 1 MHz clock compatibility
  • Self-Timed Erase and Write Cycles (5 ms max.)
  • Read current 2 mA (Max)
  • Write current 3 mA (Max)
  • Standby current 6 uA (Max)
  • Hardware Write-Protect Pin
  • More than 1 million erase/write cycles
  • Data retention > 40 years
  • Factory Programming Available
  • Available in 8-lead SOIC, 8-lead SOIJ, 8-lead TSSOP, 8-pad UDFN, 8-ball VFBGA, and WLCSP packages
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip AT24C512C is a 512Kb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 64K x 8 and is optimized for use in consumer and industrial applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.

Additional Features
    • 64K x 8 (512 Kbit)
    • 2-Wire Serial Interface, I2C Compatible
      • 400 kHz and 1 MHz clock compatibility
    • Self-Timed Erase and Write Cycles (5 ms max.)
    • Low Power Consumption
      • Read current 2 mA (Max)
      • Write current 3 mA (Max)
      • Standby current 6 uA (Max)
    • Hardware Write-Protect Pin
    • More than 1 million erase/write cycles
    • Data retention > 40 years
    • Factory Programming Available
    • Available in 8-lead SOIC, 8-lead SOIJ, 8-lead TSSOP, 8-pad UDFN, 8-ball VFBGA, and WLCSP packages
Parametrics
Name
Value
Density
512K bits
Op. Volt Range (V)
1.7 to 5.5
Max. Clock Freq.
1 MHz
Page Size (bytes)
128
Write Protect
Whole Array
Temp Range (°C)
-40°C to +85°C
Endurance
1,000,000

Documents

Jump to:

Data Sheets

Board Design Files

Development Environment

  • Integrated Development Environments
  • Programmers
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
512K
400 kHz
CSP-8, DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
400 kHz
PDIP-8, SOIJ-8
$2.19
512K
1 MHz
DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
1 MHz
PDIP-8, SOIJ-8
$2.22
512K
400 kHz
DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
400 kHz
PDIP-8, SOIJ-8
$2.19

1 MHz
SOIC-8, SOIJ-8, TSSOP-8, UDFN-8
$0.62

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT24C512C-SHM-B
0.135700
2.700000
8
SOIJ
.208in
NiPdAu
e4
AT24C512C-SHM-T
0.135700
0.390476
8
SOIJ
.208in
NiPdAu
e4
AT24C512C-SHD-B
0.135700
2.700000
8
SOIJ
.208in
NiPdAu
e4
AT24C512C-SHD-T
0.135700
0.390476
8
SOIJ
.208in
NiPdAu
e4
AT24C512C-XHD-B
0.035800
0.190000
8
TSSOP
4.4mm
NiPdAu
e4
AT24C512C-XHM-B
0.035800
0.190000
8
TSSOP
4.4mm
NiPdAu
e4
AT24C512C-XHD-T
0.035800
0.199200
8
TSSOP
4.4mm
NiPdAu
e4
AT24C512C-XHM-T
0.035800
0.199200
8
TSSOP
4.4mm
NiPdAu
e4
AT24C512C-MAHM-E
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
AT24C512C-MAHM-T
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
AT24C512C-SSHD-T-899
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
AT24C512C-SSHD-T
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C512C-SSHD-B
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C512C-SSHM-B
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C512C-SSHM-T
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C512C-SSHM-T-989
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
