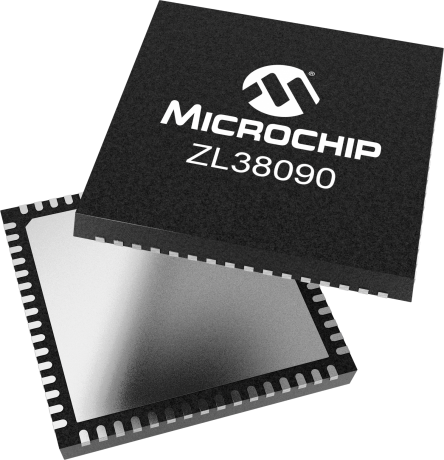

ZL38090

ASR Audio Processor

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's Timberwolf family of ZL380xx audio processors is designed with best-in-class noise reduction, stereo echo cancellation, and de-reverberation by using license-free, royalty-free intelligent audio IP algorithms.  This dedicated processor offloads the host processor in your design.  It is optimized for low power with audio hardware accelerators.  Our 1-,2-and 3-mic arrays can be implemented in a linear or triangular configuration for optimal beamforming performance.  Timberwolf is proven to pass industry standards, including Amazon Far-Field certification.  It offers an 8-band equalizer, up to four digital MIC inputs, and two internal 16 ohm speaker drivers.  Use our MiTuner GUI tool for setting your audio path configuration to easily tune for your best audio performance.  Accelerate your time-to-market by using our validated reference design.

The ZL38090 is designed for USB Audio applications such as headsets.  It provides Far Field microphones and supports sound location.

Additional Features
    • DSP with voice specific Hardware Accelerators
    • Dual ?S 16-bit DACs
    • Sampling up to 48 kHz and internal output drivers Headphone amplifiers capable of 32mW output drive power into 16 ohms Impulse pop/click inputs
    • 2 Digital Microphone inputs
    • TDM port shared between PCM and Inter-IC Sound (I2S)
    • General purpose UART port
    • Boots from Flash
    • Master SPI port for serial Flash interface Can run unattended (controllerless), self booting into a configured operational state
    • Sampling up to 48 kHz and internal output drivers
    • Headphone amplifiers capable of 32mW output drive power into 16 ohms
    • Impulse pop/click inputs
    • Master SPI port for serial Flash interface
    • Can run unattended (controllerless), self booting into a configured operational state
Parametrics
Name
Value
Far Field MIC (FFM)
Yes
Sound Locator
Yes
Number of MICs
2
Array
Linear
Beamforming (Degrees)
Yes
Noise Reduction
Yes
Wind Noise Reduction
No
8-band EQ
Yes
USB Audio/Control
Yes
Number of Pins
56 and 64

Documents

Jump to:

Data Sheets


2483KB

Product Brief


1194KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Timberwolf Development Board
Timberwolf Development Board ( EV08Z13A )

Microchip’s EV08Z13A evaluation board features Microchip’s Timberwolf audio processor, capable of running the full family of Timberwolf technology firmware. The EV08Z13A is designed to help developers quickly prototype and demonstrate high-quality audio processing algorithms such as full-duplex stereo echo cancellation, beamforming, noise reduction, dynamic range control, audio

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL38090UGB2
0.048400
0.000000
56
WLCSP
3.05x3.05xmm
SAC405
e6
ZL38090LDG1
0.244500
1.207692
64
VQFN
9x9x1mm
Matte Tin
e3
ZL38090LDF1
0.244500
0.600000
64
VQFN
9x9x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
