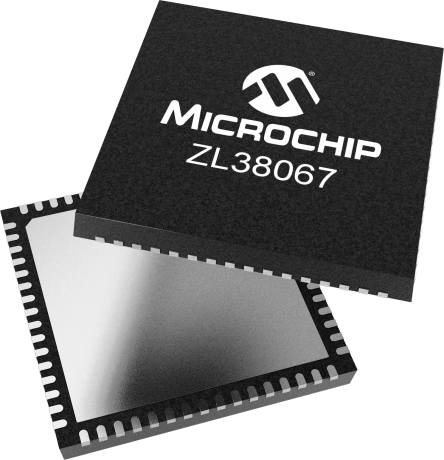

product primary image

ZL38067

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's Timberwolf family of ZL380xx audio processors is designed with best-in-class noise reduction, stereo echo cancellation, and de-reverberation by using license-free, royalty-free intelligent audio IP algorithms.  This dedicated processor offloads the host processor in your design.  It is optimized for low power with audio hardware accelerators.  Our 1-,2-and 3-mic arrays can be implemented in a linear or triangular configuration for optimal beamforming performance.  Timberwolf is proven to pass industry standards, including Amazon Far-Field certification.  It offers an 8-band equalizer, up to four digital MIC inputs, and two internal 16 ohm speaker drivers.  Use our MiTuner GUI tool for setting your audio path configuration to easily tune for your best audio performance.  Accelerate your time-to-market by using our validated reference design.


The ZL38067 achieves superior barge-in performance with our Automatic Speech Recognition (ASR) engine and passes Far Field certification.

Additional Features
    • Speaker independent automatic speech recognition
    • Enrolled Fixed trigger
    • User defined (Speaker dependent) Trigger
    • Pass Phrase Detection
    • Wake-on-trigger signal to enable full-duplex voice communication
    • Audio barge-in
    • Noise Reduction
    • Far field microphone processing
    • Two way audio
Parametrics
Name
Value
Long Tail AEC (mS)
256.0
Far Field MIC (FFM)
Yes
ASR Enabled
Yes
ASR Assist
Yes
Number of MICs
1
Noise Reduction
Yes
8-band EQ
Yes
Number of Pins
56 and 64

Documents

Jump to:

Data Sheets


3763KB

Product Brief


1161KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Timberwolf Development Board
Timberwolf Development Board ( EV08Z13A )

Microchip’s EV08Z13A evaluation board features Microchip’s Timberwolf audio processor, capable of running the full family of Timberwolf technology firmware. The EV08Z13A is designed to help developers quickly prototype and demonstrate high-quality audio processing algorithms such as full-duplex stereo echo cancellation, beamforming, noise reduction, dynamic range control, audio

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL38067UGB2
0.048400
0.000000
56
WLCSP
3.05x3.05xmm
SAC405
e6
ZL38067LDF1
0.244500
0.600000
64
VQFN
9x9x1mm
Matte Tin
e3
ZL38067LDG1
0.244500
1.207692
64
VQFN
9x9x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
