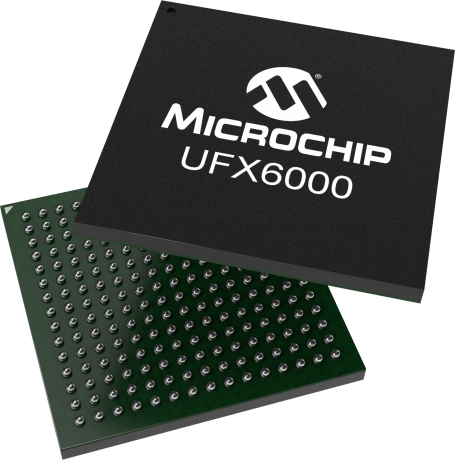

product primary image

UFX6000

Status: Not Recommended for new designs

Features:

  • USB 2.0 device controller with integrated USB 2.0 PHY
  • Highly-efficient USB graphics engine supports multiple displays on a host
  • HDMI/DVI display connectivity via integrated HDMI/DVI controller/PHY
  • VGA display connectivity via integrated video DAC
  • Support for external display interface controllers via digital RGB interface
  • High-performance DDR2 SDRAM controller with integrated DDR2 PHY
  • Capable of USB self-powered or bus-powered operation
  • Automatic scaling to native resolution of connected displays
  • Supports mirror or extended mode via standard OS display control panel
  • Supports Microsoft''s Windows® 7, Windows Vista® and Windows XP OS''s
  • Fully-compliant with XDDM and WDDM display driver models
  • Optional EEPROM, I2C and TAP controllers
  • Commercial temperature range (0° to 70°C)
  • Optional industrial temperature range (-40° to 85°C) qualified SKUs available
  • 225-ball LFBGA, RoHS-compliant package
  • Multi-monitor Displays
  • USB-to-Video Adapters
  • USB Docking Stations
  • USB Port Replicators
  • USB Zero/Thin Clients
  • USB Monitors/Projectors
  • PC-to-TV Adapters
  • Embedded Systems
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

ViewSpan is a USB 2.0 graphics solution that utilizes 480 Mbps Hi-Speed USB technology as a display interface. Capable of interfacing with VGA, DVI and HDMI-enabled displays without glue logic, ViewSpan brings USB's versatility, expandability and plug-and-play simplicity to the way consumers interact with their PC monitors and TVs. ViewSpan offers a system solution consisting of a USB graphics controller (UFX6000) and enabling host software. Powered by innovative content-aware, bandwidth-efficient and resolution-optimized video processing algorithms, ViewSpan seamlessly delivers smooth HD video, vivid static images and clear text to virtually any consumer or commercial display, all from a USB cable. ViewSpan is capable of supporting full 1080p HD resolution over a USB Hi-Speed link. Microchip also offers the UFX7000 featuring ViewSpan5G™ technology as a SuperSpeed USB 3.0 option.

Additionally, Microchip's complimentary and confidential USBCheck™ online design review service is available for customers who select the UFX6000 for their application design-in.*

*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account..

Additional Features

    Highlights

    • Single-chip Hi-Speed USB 2.0 graphics controller
      • USB 2.0 device controller with integrated USB 2.0 PHY
    • Highly-efficient USB graphics engine supports multiple displays on a host
    • HDMI/DVI display connectivity via integrated HDMI/DVI controller/PHY
    • VGA display connectivity via integrated video DAC
    • Support for external display interface controllers via digital RGB interface
    • High-performance DDR2 SDRAM controller with integrated DDR2 PHY
    • Capable of USB self-powered or bus-powered operation
    • Automatic scaling to native resolution of connected displays
    • Supports mirror or extended mode via standard OS display control panel
    • Supports Microsoft's Windows® 7, Windows Vista® and Windows XP OS's
    • Fully-compliant with XDDM and WDDM display driver models
    • Optional EEPROM, I2C and TAP controllers
    • Commercial temperature range (0° to 70°C)
    • Optional industrial temperature range (-40° to 85°C) qualified SKUs available
    • 225-ball LFBGA, RoHS-compliant package

    Target Applications

    • Multi-monitor Displays
    • USB-to-Video Adapters
    • USB Docking Stations
    • USB Port Replicators
    • USB Zero/Thin Clients
    • USB Monitors/Projectors
    • PC-to-TV Adapters
    • Embedded Systems
Parametrics
Name
Value
Description
USB 2.0 Graphics Controller
Upstream Port
USB 2.0
USB Speed
High Speed
Downstream Ports
VGA, HDMI, DVI, Digital RGB
GPIOs
22
MGMT I/F
Yes
ROM I/F
Yes
Max Display Resolution
2048x1152
Graphics/Video Performance
Compressed
VGA
Yes
DVI
Yes
HDMI
Yes
Digitial RGB
Yes
Windows 7 / Vista / XP
Yes
Op Voltage (V)
1.2, 1.8, 3.3
Temp. Range Max.
70

Documents

Jump to:

Development Environment

  • Software Libraries
Software Libraries
UFX Software Developer's Databook

UFX Software Developer's Databook.

Learn More
UFX6000/UFX7000 Embedded FB Kernel Linux Driver

UFX6000/UFX7000 Embedded FB Kernel Linux Driver

Learn More
UFX6000/UFX7000 MAC OS 10.6 and 10.7 Driver

UFX6000/UFX7000 MAC OS 10.6 and 10.7 Driver

Learn More
UFX6000/UFX7000 Windows Device Driver and Utility

UFX6000/UFX7000 Windows Device Driver and Utility

Learn More
UFX6000/UFX7000 Xorg Linux Driver

UFX6000/UFX7000 Xorg Linux Driver

Learn More

Similar Devices

Product
Upstream Port
USB Speed
Temp. Range Max. (C°)
Price 5K
USB 2.0
High Speed
70
$13.48
USB3.0
Super Speed
70
$17.98

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
UFX6000-VE
1.500000
225
LFBGA
13x13x1.3
SAC
e8
UFX6000-VE-TR
0.926667
225
LFBGA
13x13x1.3
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
