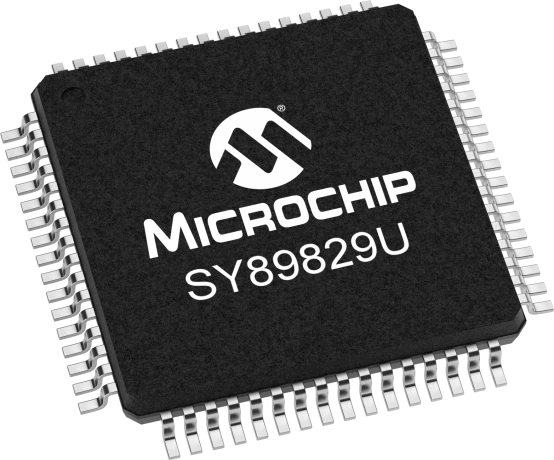

product primary image

SY89829U

Status: In Production

Features:

  • Dual 1:10 fanout buffer/translator
  • Accepts LVPECL or LVDS inputs
  • Multiplexed inputs ideal for redundant clock switchover
  • >2GHz fMAX (toggle)
  • <50ps ch-ch skew
  • LVDS input includes 100Ω internal termination
  • Low supply voltage: 2.5V, 3.3V
  • -40°C to +85°C temperature range
  • Output enable (OE) pin
  • Available in 64 EPAD-TQFP
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89829U is a High Performance dual 1:10 or single 1:20 LVPECL Clock Driver. The part is designed for use in low voltage (2.5V/3.3V) applications which require a large number of outputs to drive precisely aligned, ultra low skew signals to their destination. The input is multiplexed from either LVDS or LVPECL by the CLK_SEL pin. The LVDS inputs include a 100Ω internal termination across the input pair, thus eliminating any need for external termination. The 2:1 input mux makes this device an ideal choice for redundant clock applications that need to switch between two reference clocks.

The output enable (OE) is synchronous so that the outputs will only be enabled/ disabled when they are already in the LOW state. This eliminates any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89829U features low pin-to-pin skew (50ps max.) and low part-to-part skew (200ps max.)--performance previously unachievable in a standard product having such a high number of outputs. The SY89829U is available in a single space saving package which provides a lower overall cost solution. In addition, a single chip solution improves timing budgets by eliminating the multiple device solution with their corresponding large part-to-part skew.

Additional Features
    • Dual 1:10 fanout buffer/translator
    • Accepts LVPECL or LVDS inputs
    • Multiplexed inputs ideal for redundant clock switchover
    • Guaranteed AC parameters:
      • >2GHz fMAX (toggle)
      • <50ps ch-ch skew
    • LVDS input includes 100Ω internal termination
    • Low supply voltage: 2.5V, 3.3V
    • -40°C to +85°C temperature range
    • Output enable (OE) pin
    • Available in 64 EPAD-TQFP
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Dual 1:10
Input
LVPECL/LVDS
Output
LVPECL
Supply Voltage
2.5/3.3
Max Freq (GHz)
1
Max Prop Delay (ps)
1450
Icc (mA)
100
Max Within Device Skew (ps)
<50
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
LVPECL

Documents

Jump to:

Data Sheets

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89829UHY-TR
0.261300
0.904600
64
TQFP
10x10x1.0mm
Matte Tin
e3
SY89829UHY
0.261300
1.607500
64
TQFP
10x10x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
