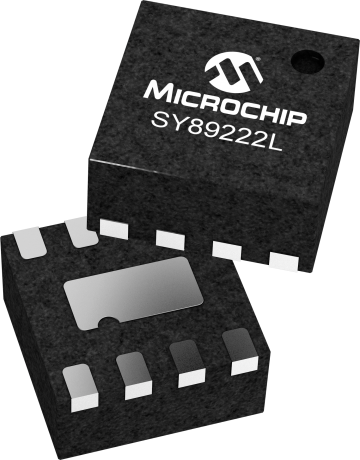

SY89222L

Status: In Production

Features:

  • 3.3V power supply
  • 300ps typical propagation delay
  • <100ps output-to-output skew
  • Differential LVPECL outputs
  • PNP TTL inputs for minimal loading
  • Flow-through pinouts
  • Available in ultra-small 8-pin MLF™ (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89222L is a dual TTL-to-differential LVPECL translator with a +3.3V power supply. Because LVPECL (Positive ECL) levels are used, only +3.3V and ground are required. The SY89222L is functionally equivalent to the SY100ELT22L but in an ultra-small 8-lead MLF™ package that features a 70% smaller footprint. The low skew, dual gate design of the SY89222L makes it ideal for applications that require the translation of a clock and a data signal.

Additional Features
    • 3.3V power supply
    • 300ps typical propagation delay
    • <100ps output-to-output skew
    • Differential LVPECL outputs
    • PNP TTL inputs for minimal loading
    • Flow-through pinouts
    • Available in ultra-small 8-pin MLF™ (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Logic Translators
Input
TTL
Output
PECL
Supply Voltage
3.3
Max Freq (GHz)
0.4
Max Prop Delay (ps)
600
Icc (mA)
25
Max Within Device Skew (ps)
100
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Dual
Output Type
PECL
Output Voltage
3.3

Documents

Jump to:

Data Sheets

11/11/2015
42KB

User Guides

11/11/2015
3076KB
