Microchip Technology Inc

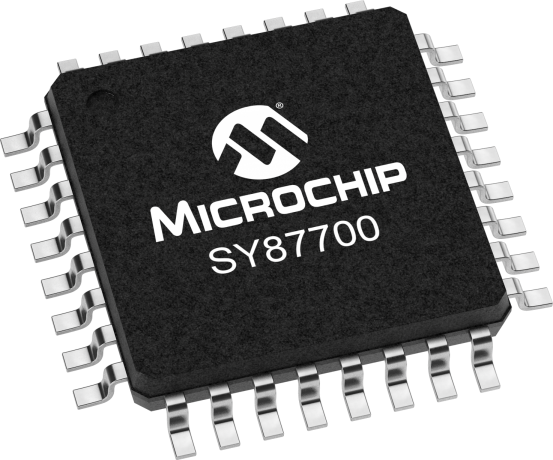

SY87700AL

Status: In Production

Features:

  • 3.3V power supply
  • SONET/SDH/ATM compatible
  • Clock and data recovery from 32Mbps up to 208Mbps NRZ data stream; clock generation from 32Mbps to 208Mbps
  • Two on-chip PLLs: one for clock generation and another for clock recovery
  • Selectable reference frequencies
  • Differential PECL high-speed serial I/O
  • Line receiver input: no external buffering needed
  • Link fault indication
  • 100k ECL compatible I/O
  • Industrial temperature range (-40°C to +85°C)
  • Lower power: fully compatible with Micrel''s SY87700V, but with 30% less power
  • Available in 32-pin ePad-TQFP and 28-pin SOIC packages, (28-pin SOIC is available, but NOT recommended for new designs.)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY87700AL is a complete clock recovery and data retiming integrated circuit for data rates from 32Mbps up to 208Mbps NRZ. The device is ideally suited for SONET/SDH/ATM applications and other high-speed data transmission systems. Clock recovery and data retiming is performed by synchronizing the on-chip VCO directly to the incoming data stream. The VCO center frequency is controlled by the reference clock frequency and the selected divide ratio. On-chip clock generation is performed through the use of a frequency multiplier PLL with a byte rate source as reference. The SY87700AL also includes a link fault detection circuit.

Additional Features
    • 3.3V power supply
    • SONET/SDH/ATM compatible
    • Clock and data recovery from 32Mbps up to 208Mbps NRZ data stream; clock generation from 32Mbps to 208Mbps
    • Two on-chip PLLs: one for clock generation and another for clock recovery
    • Selectable reference frequencies
    • Differential PECL high-speed serial I/O
    • Line receiver input: no external buffering needed
    • Link fault indication
    • 100k ECL compatible I/O
    • Industrial temperature range (-40°C to +85°C)
    • Lower power: fully compatible with Micrel's SY87700V, but with 30% less power
    • Available in 32-pin ePad-TQFP and 28-pin SOIC packages, (28-pin SOIC is available, but NOT recommended for new designs.)
Parametrics
Name
Value
Part Type
Clock and Data Recovery
Data Rate Capability
32-208
Power Supply (V)
3.3
Data Output Type
PECL

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY87700ALZG
0.792500
1.481482
28
SOIC
.300In
NiPdAu
e4
Rohs icon
efup china icon
SY87700ALZG-TR
0.792500
1.580000
28
SOIC
.300In
NiPdAu
e4
Rohs icon
efup china icon
SY87700ALHG
0.132200
0.868000
32
TQFP
7x7x1.0mm
NiPdAu
e4
Rohs icon
efup china icon
SY87700ALHG-TR
0.132200
0.868000
32
TQFP
7x7x1.0mm
NiPdAu
e4
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
