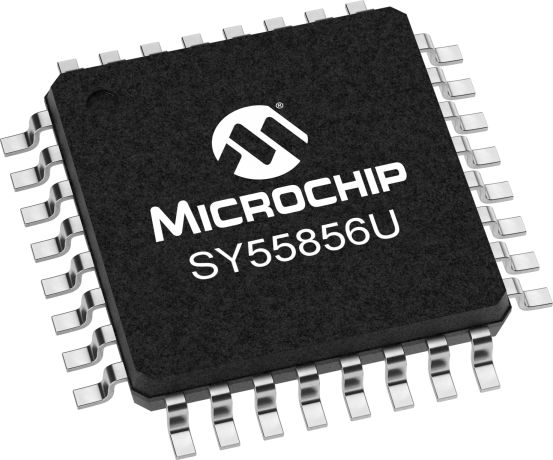

product primary image

SY55856U

Status: In Production

Features:

  • >2.5GHz fMAX
  • <384ps prop delay
  • <120ps tr/tf
  • Delay either clock or data
  • 50ps increments
  • ±350ps total delay
  • Source terminated CML outputs
  • Full differential I/O
  • Wide supply voltage spectrum: 2.3V to 3.6V
  • Available in a tiny 32-pin EPAD-TQFP package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY55856U is a 2.5GHz, two-channel, fully differential CML (Current Mode Logic) delay line. The device is optimized to adjust the relative delay between two channels, such as clock and data, in 50ps increments. Both inputs may be adjusted in either direction in 7 increments of 50ps, for a total adjustment range of ±350ps. In addition, the clock input maybe inverted through the CINV control pin.The SY55856U inputs are designed to accept singleended or differential CML signals. The differential CML outputs are optimized for 50Ω loads (50Ω source terminated), thus only requires a single 100Ω resistor across the output pair. Output rise and fall time is an extremely fast 110ps(max) and the differential swing is 400mV. The maximum throughput of the SY55856U is guaranteed to exceed 2.5GHz (5Gbps).

Additional Features
    • Guaranteed AC parameters over temp and voltage
      • >2.5GHz fMAX
      • <384ps prop delay
      • <120ps tr/tf
    • Delay either clock or data
    • 50ps increments
    • ±350ps total delay
    • Source terminated CML outputs
    • Full differential I/O
    • Wide supply voltage spectrum: 2.3V to 3.6V
    • Available in a tiny 32-pin EPAD-TQFP package
Parametrics
Name
Value
Product Type
Skew Management
Description
Dual Channel Programmable Delay
Input
CML
Output
CML
Supply Voltage
2.5/3.3
Max Freq (GHz)
2.5
Max Data (Gbps)
5
Max Prop Delay (ps)
0.7
Icc (mA)
140
Max Within Device Skew (ps)
50
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Delay Resolution ps/step
50
Channels
Dual
Output Type
CML
Output Voltage
2.5/3.3V

Documents

Jump to:

Data Sheets


128KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY55856UHG
0.132200
0.868000
32
TQFP
7x7x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
