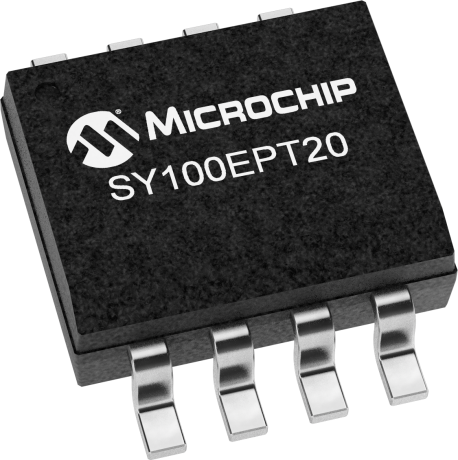

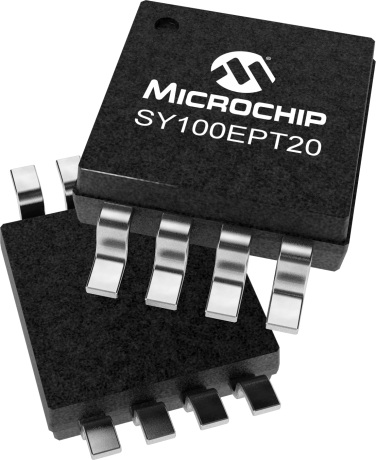

product primary image

SY100EPT20

Status: In Production

Features:

  • 3.3V and 5V power supply options
  • 300ps typical propagation delay
  • Differential LVPECL output
  • ICC Max 20mA
  • PNP LVTTL input for minimal loading
  • Q output will default HIGH with inputs open
  • High bandwidth to 800MHz typical
  • Available in 8-pin MSOP and SOIC package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY10/100EPT20 is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in either LVTTL/LVCMOS/ LVPECL or TTL/CMOS/PECL systems. The device only requires a single positive supply of 3.3V or 5V - no negative supply is required. The tiny 8-pin MSOP package and the low skew, dual gate design of the EPT20V makes it ideal for those applications where space, performance, and low power are at a premium.

Additional Features
    • 3.3V and 5V power supply options
    • 300ps typical propagation delay
    • Differential LVPECL output
    • ICC Max 20mA
    • PNP LVTTL input for minimal loading
    • Q output will default HIGH with inputs open
    • High bandwidth to 800MHz typical
    • Available in 8-pin MSOP and SOIC package
Parametrics
Name
Value
Product Type
Logic Translators
Input
TTL/CMOS
Output
PECL
Supply Voltage
3.3V/5V
Max Freq (GHz)
0.35
Max Prop Delay (ps)
300
Icc (mA)
20
Max Within Device Skew (ps)
500
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Voltage
3.3V/5V

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EPT20VKG-TR
0.025100
0.334700
8
MSOP
3x3mm
NiPdAu
e4
SY100EPT20VKG
0.025100
0.124600
8
MSOP
3x3mm
NiPdAu
e4
SY100EPT20VZG-TR
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
SY100EPT20VZG
0.075000
0.163265
8
SOIC
3.90mm(.150in)
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
