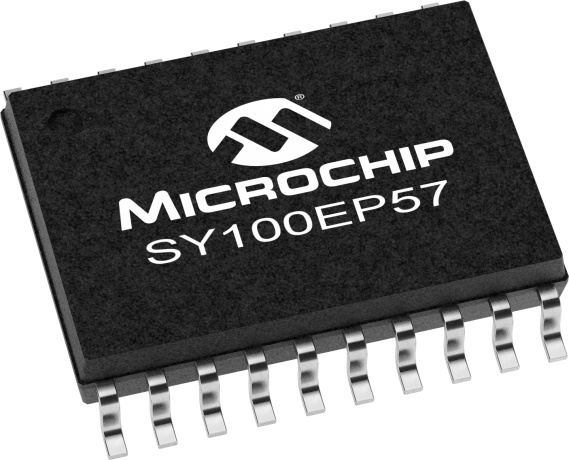

product primary image

SY100EP57

Status: In Production

Features:

  • Dual, fully differential 2:1 PECL/ECL multiplexer
  • >3GHz fMAX (toggle)
  • <220ps rise/fall times
  • <520ps propagation delay (D-to-Q)
  • Flexible power supply: 3.0V to 5.5V
  • Wide operating temperature range: –40°C to +85°C
  • VBB reference for AC-coupled and single-ended applications
  • 100k PECL/ECL compatible logic
  • Available in 20-pin TSSOP package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY100EP57V is a high-speed, low-skew, fully differential PECL/ECL 4:1 multiplexer in a 20-pin TSSOP package. This device is a pin-for-pin, plug-in replacement to the MC10/100EP57DT. The signal-path inputs (D0:D3) accept differential signals as low as 150mVpk-pk. All I/O pins are 100K EP PECL/ECL logic compatible. AC–performance is guaranteed over the industrial –40°C to +85°C temperature range and 3.0V to 5.5V supply voltage range. This device will operate in PECL/LVPECL or ECL/ LVECL mode. The SY100EP57 propagation delay is less than 520ps, and the Select-to-valid output delay is less than 575ps over temperature and voltage. For clock applications, the high-speed design combined with an extremely fast rise/fall time of less than 220ps produces a toggle frequency as high as 3GHz (400mVpk-pk swing). Two VBB output reference pins (approx equal to VCC–1.4V) are available for AC–coupled or single-ended applications. The SY100EP57V is part of Micrel’s high-speed, Precision Edge timing and distribution family. For applications that require a different I/O combination, consult the Micrel website at www.micrel.com, and choose from a comprehensive product line of high-speed, low skew fanout buffers, translators, and clock dividers.

Additional Features
    • Dual, fully differential 2:1 PECL/ECL multiplexer
    • Guaranteed AC parameters over temperature/voltage:
      • >3GHz fMAX (toggle)
      • <220ps rise/fall times
      • <520ps propagation delay (D-to-Q)
    • Flexible power supply: 3.0V to 5.5V
    • Wide operating temperature range: –40°C to +85°C
    • VBB reference for AC-coupled and single-ended applications
    • 100k PECL/ECL compatible logic
    • Available in 20-pin TSSOP package
Parametrics
Name
Value
Product Type
Multiplexers
Description
4:01
Input
PECL/ECL
Output
PECL/ECL
Supply Voltage
3.3V/5V
Max Freq (GHz)
3
Max Prop Delay (ps)
520
Icc (mA)
50
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
PECL/ECL
Output Voltage
3.3V/5V

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EP57VK4G
0.076500
0.205135
20
TSSOP
4.4mm
NiPdAu
e4
SY100EP57VK4G-TR
0.076500
0.521326
20
TSSOP
4.4mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
