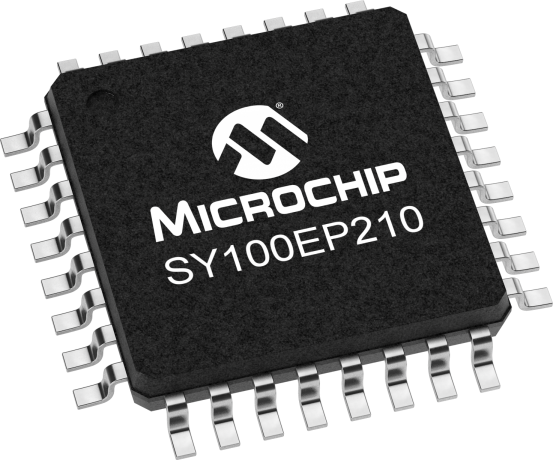

SY100EP210

Status: In Production

Features:

  • 2.5V and 3.3V power supply options
  • fMAX >3.0GHz
  • <25ps within-device skew
  • <250ps tr/tf
  • <380ps propagation delay (differential)
  • Wide temperature range: –40°C to +85°C
  • Differential design
  • VBB output
  • Fully compatible with industry standard 100K I/O levels
  • Available in 32-pin TQFP Package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY100EP210U is a high-speed, precision low skew 1-to-5 dual differential clock driver. HSTL inputs can be used when the EP210U is operating in PECL mode.The EP210U specifically guarantees critical AC parameters over temperature and voltage. Optimal design, layout, and processing minimize skew within device and from device-to-device.The SY100EP210U, as with most other ECL devices, can be operated from a positive VCC supply in PECL mode. This allows the EP210U to be used for high performance clock distribution in 3.3V or +2.5V systems. Single-ended input operation is limited to a VCC ≥ 3.0V in PECL mode, or VEE ≤ –3.0V in ECL mode.Designers can take advantage of the EP210U’s performance to distribute low skew clocks across the backplane or to multiple points on a board.

Additional Features
    • 2.5V and 3.3V power supply options
    • Guaranteed AC parameters over temperature:
      • fMAX >3.0GHz
      • <25ps within-device skew
      • <250ps tr/tf
      • <380ps propagation delay (differential)
    • Wide temperature range: –40°C to +85°C
    • Differential design
    • VBB output
    • Fully compatible with industry standard 100K I/O levels
    • Available in 32-pin TQFP Package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Dual 1:5 Differential LVECL/LVPECL/HSTL Clock Divider
Input
LVECL/LVPECL
Output
PECL
Supply Voltage
2.5/3.3
Max Data (Gbps)
3
Max Prop Delay (ps)
Icc (mA)
70
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
PECL

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EP210UTG-TR
0.132500
0.654600
32
TQFP
7x7x1.0mm
NiPdAu
e4
SY100EP210UTG
0.132500
0.984400
32
TQFP
7x7x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
